Valentini Uses Italian Made Gearboxes with the Largest Sumps For Cooler Operation & Longer Life!
-
Side Gear Drive System Is In An Oil Bath Gear Box.
-
Dual Rotor Scraper Blades (on the Inside Rotor Ends) Prevent Material From Wrapping To Protect Rotor Seals.
-
Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
-
Dual Cylinder, Hydraulically Adjusted Packer Roller Provides Excellent Means of Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
-
Blade Protecting Counter Flange Kit.
-
Unique & Patented Labyrinth Seals Ensure Bearings are Protected From Dirt!
-
Skid Shoes or Hydraulic Rear Roller For Working Depth Adjustment.
-
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
-
Front & Side Safety Guards for Personnel & Equipment Protection.
-
Tiller Includes a 1-3/4", 20 Spline 1000RPM, Cam Clutch Protected PTO Shaft!
-

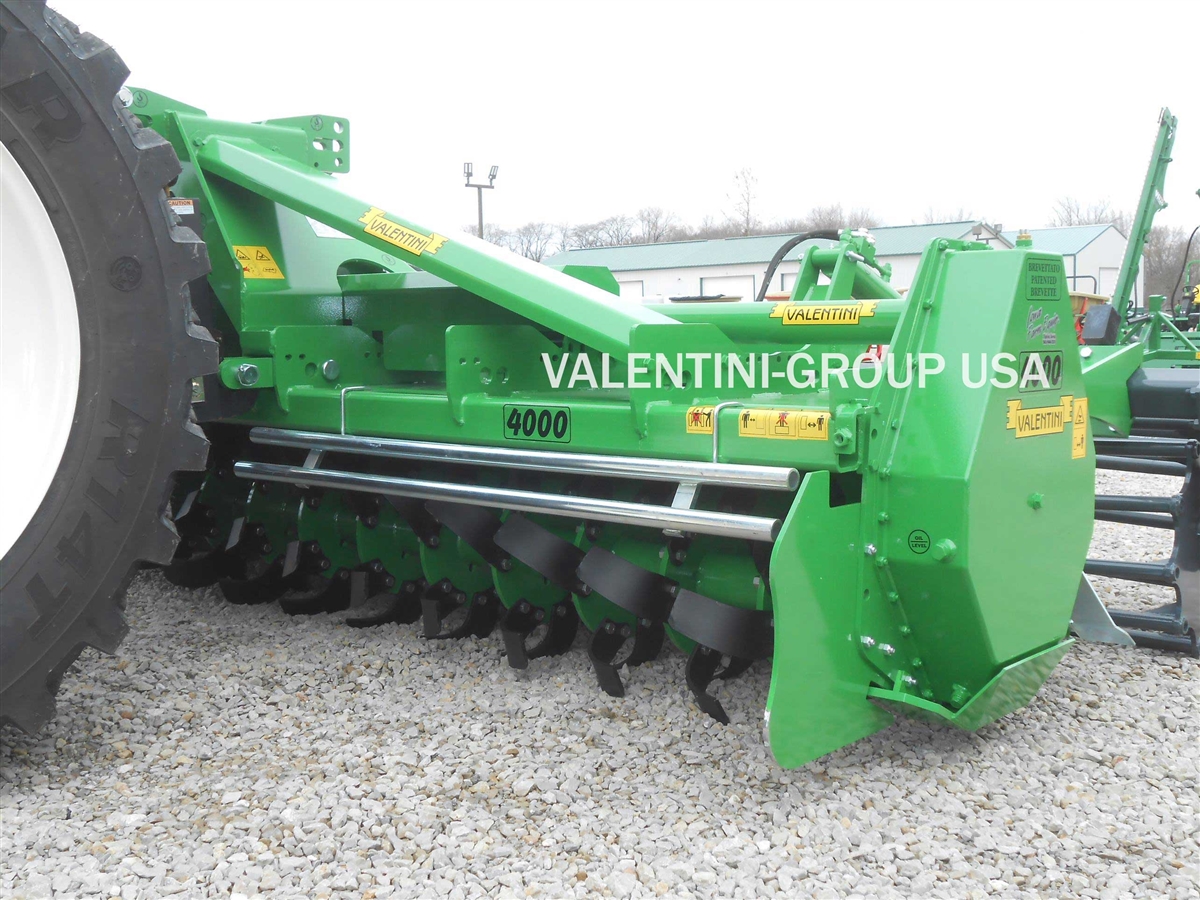

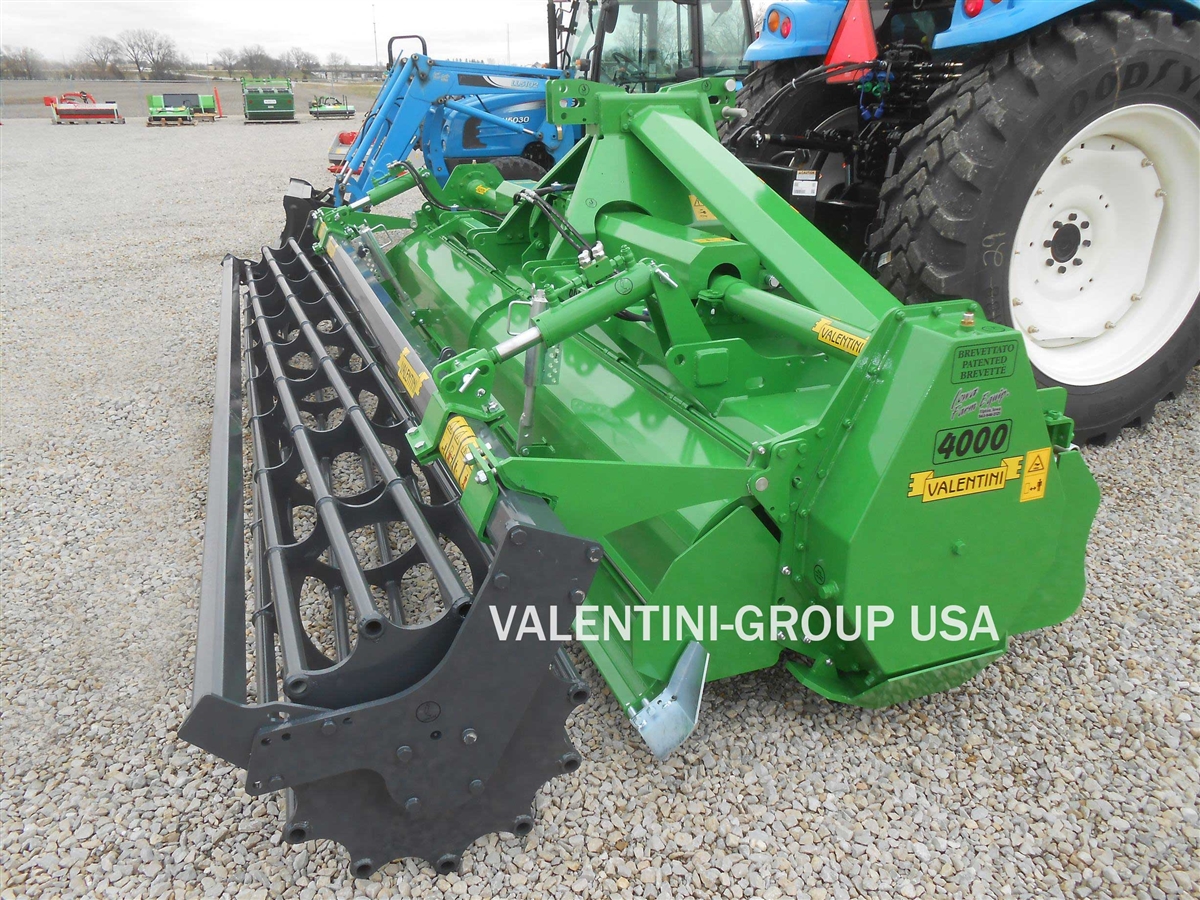

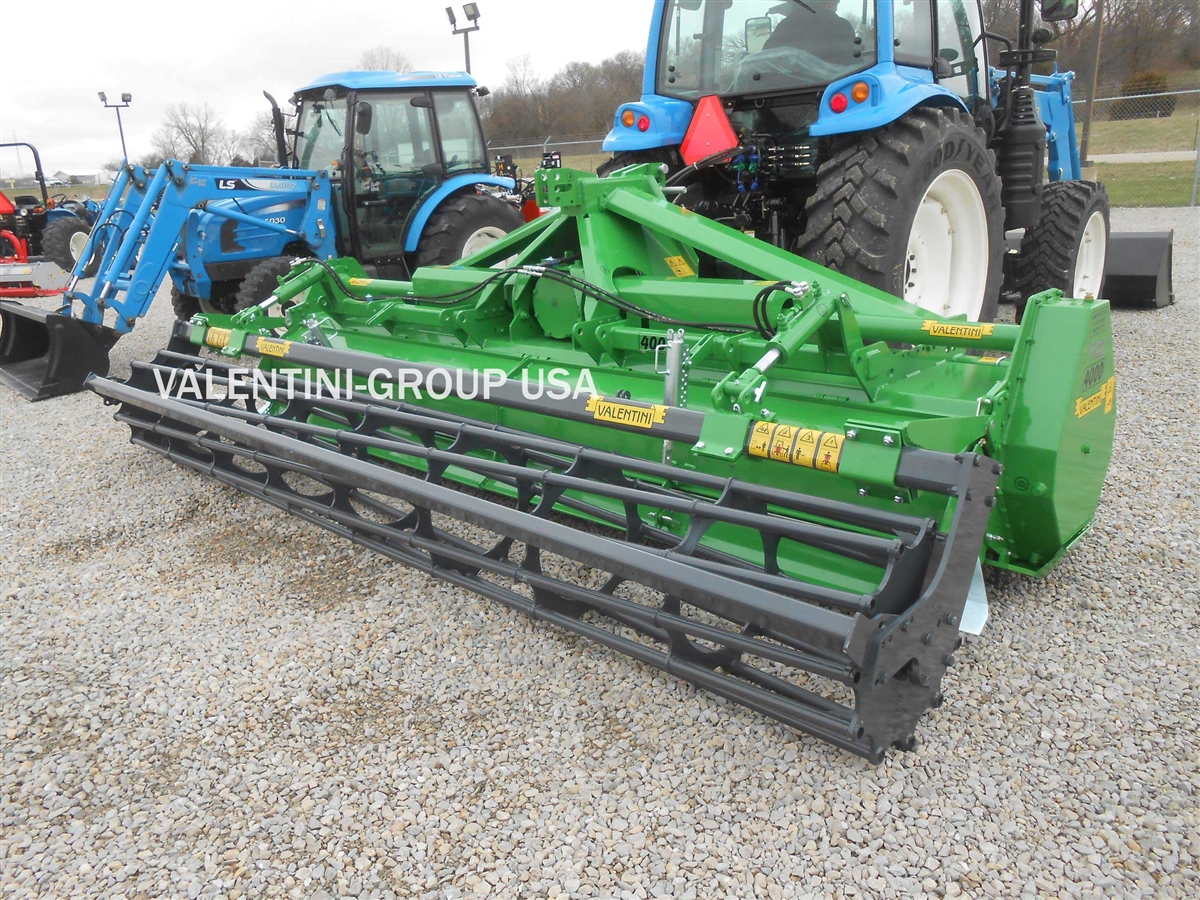

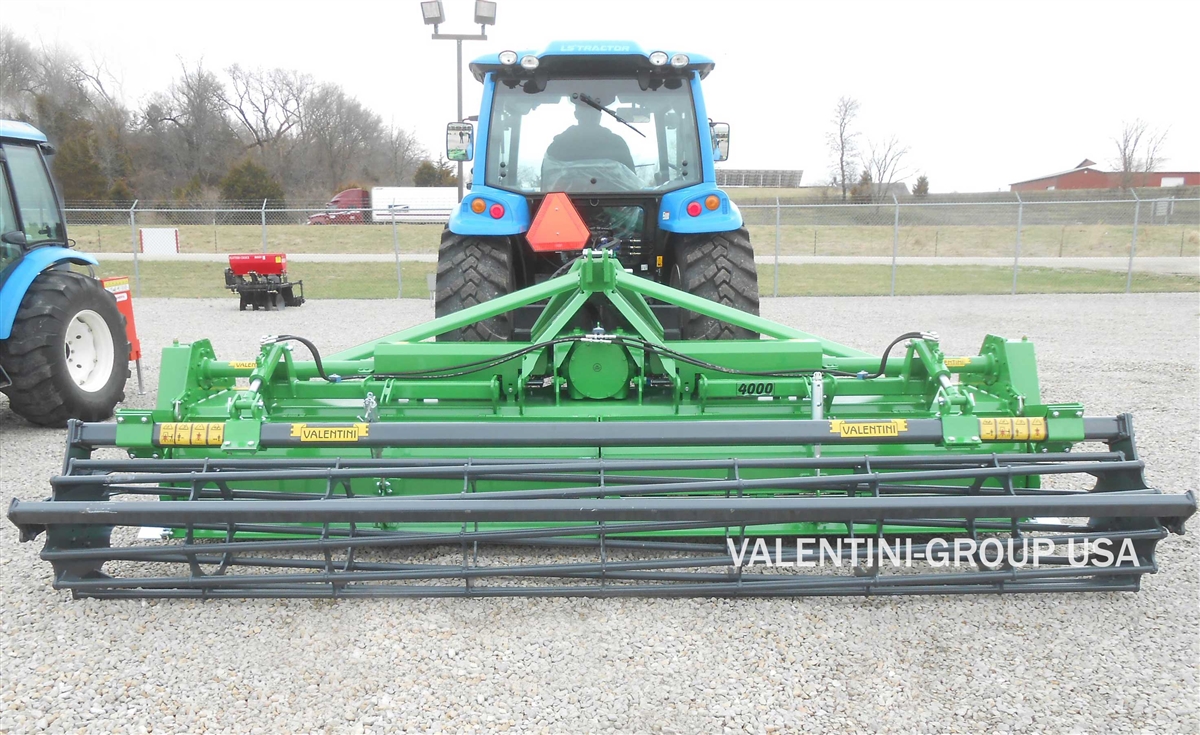

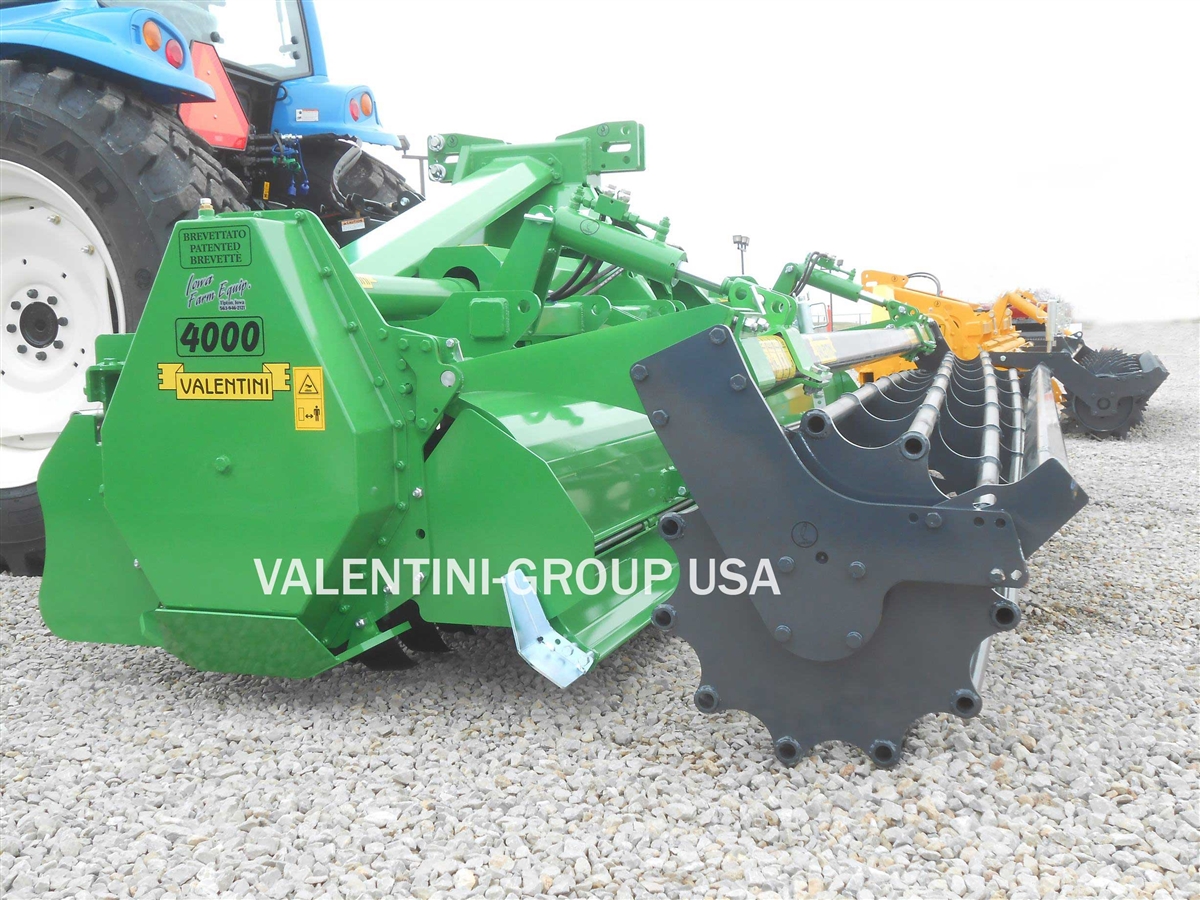

Sample Images & Video Shown Are For Reference Only & Not Included In This Listing (Described Below):
-
Tractor Is Not Included.
-
'Optional' Cage Roller Is Not Included.
-
Sample Video is of the U3000 Tiller, But this Listing is for the Z4000DT Tiller w/Packer Roller.
-
Clevis Style, Category 3, 3-Point is Quick Hitch Compatible!
-
1000RPM Gearbox is Suitable for 290 to 400HP, PTO.
-
Tills a 13'-6" Wide Path.
-
Overall Working Width: 14'-2".
-
Working Depth: 11"!
-

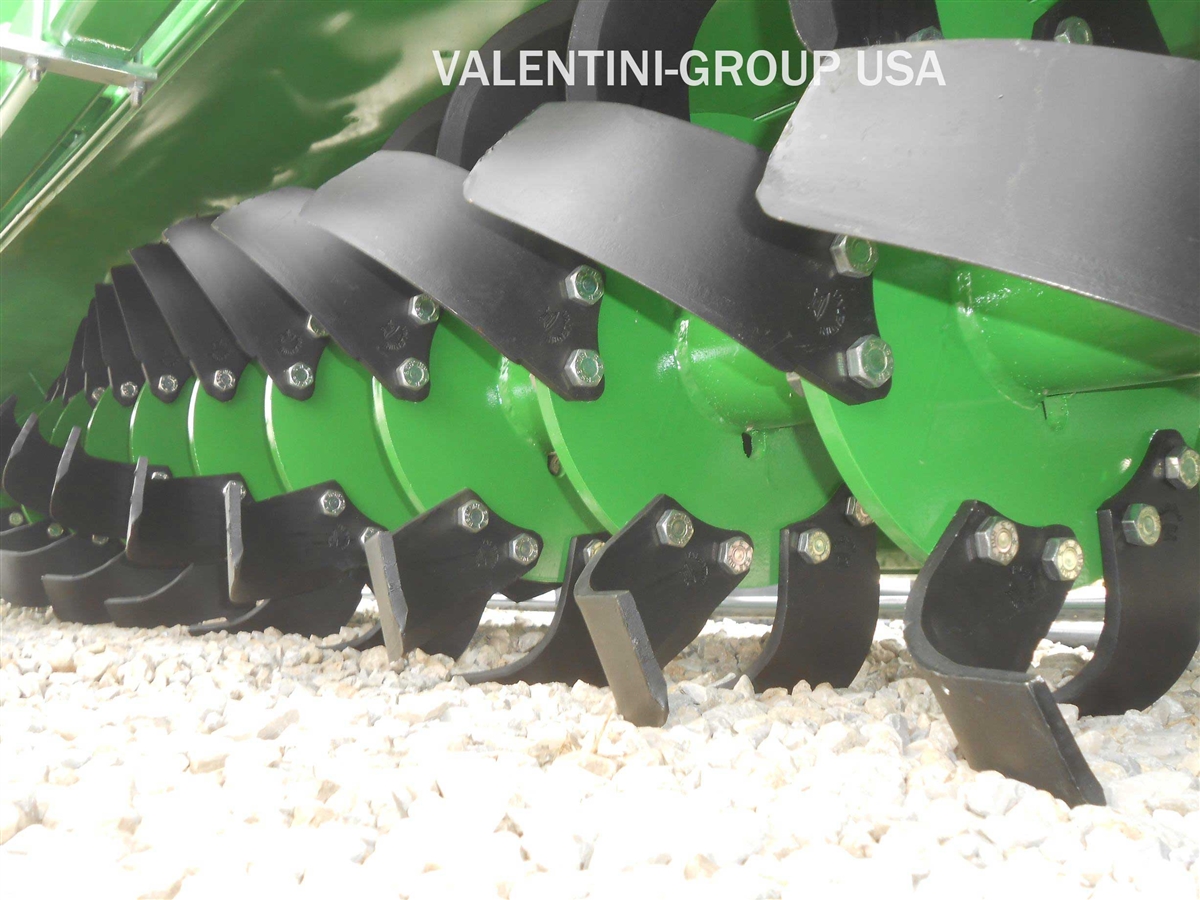

Rotor Has 11 Flanges For a Total of 96 Blades.
-
6 Blades Per Flange on 9 Center Flanges.
-
3 Blades Per Flange on 2 Outside Flanges.
-
Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
-
Tiller Weight: 5,280lb's (less PTO Shaft, Pallet/Crating, etc.).
-
Packer Roller Weight: 1,555lb's (less Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
