U3000 Heavy Duty Rotary Tiller:
10'-2" Path, 11" Working Depth
Suitable for 100-170HP

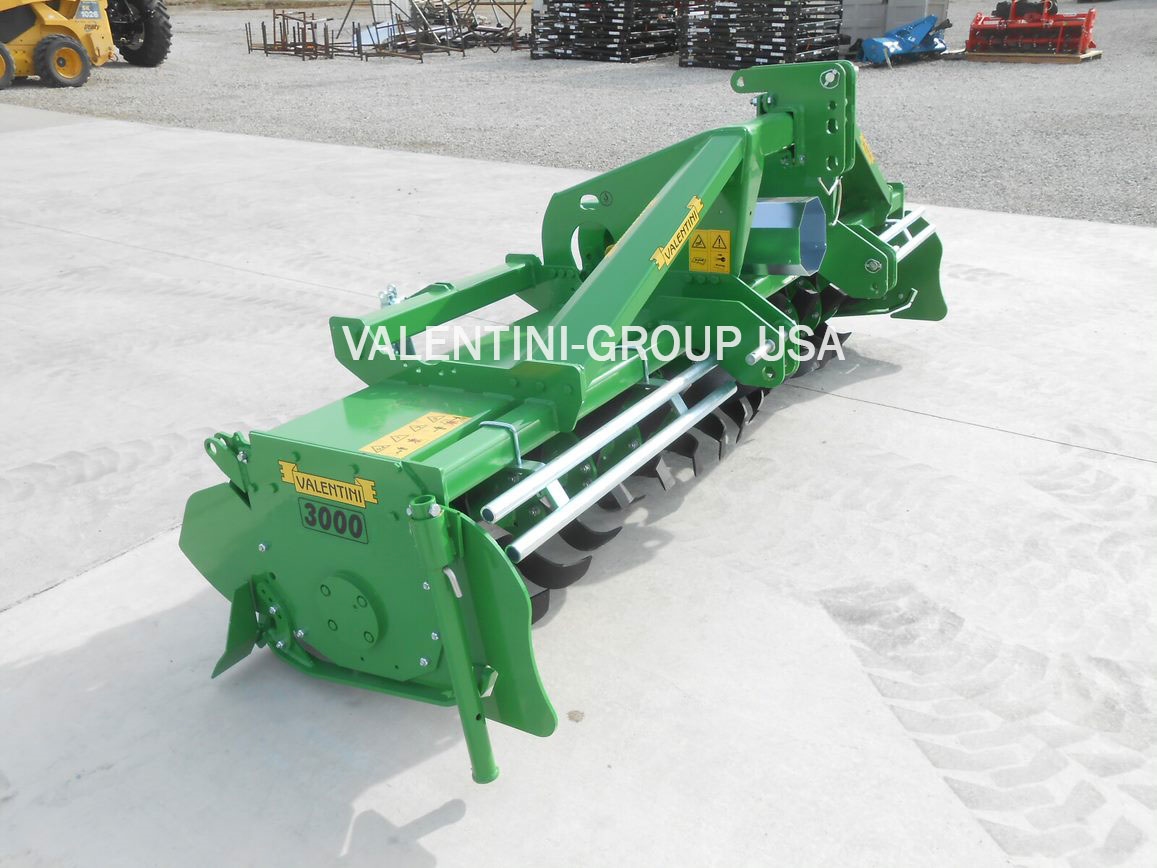

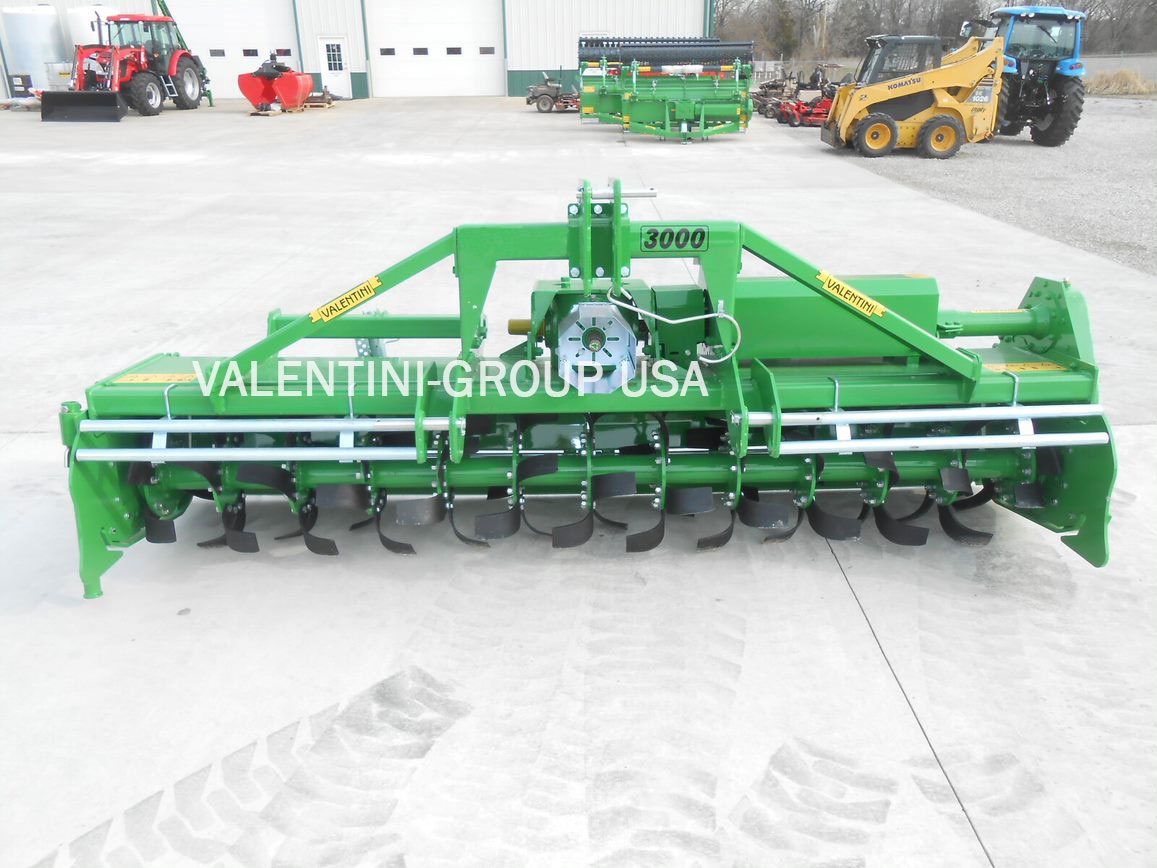

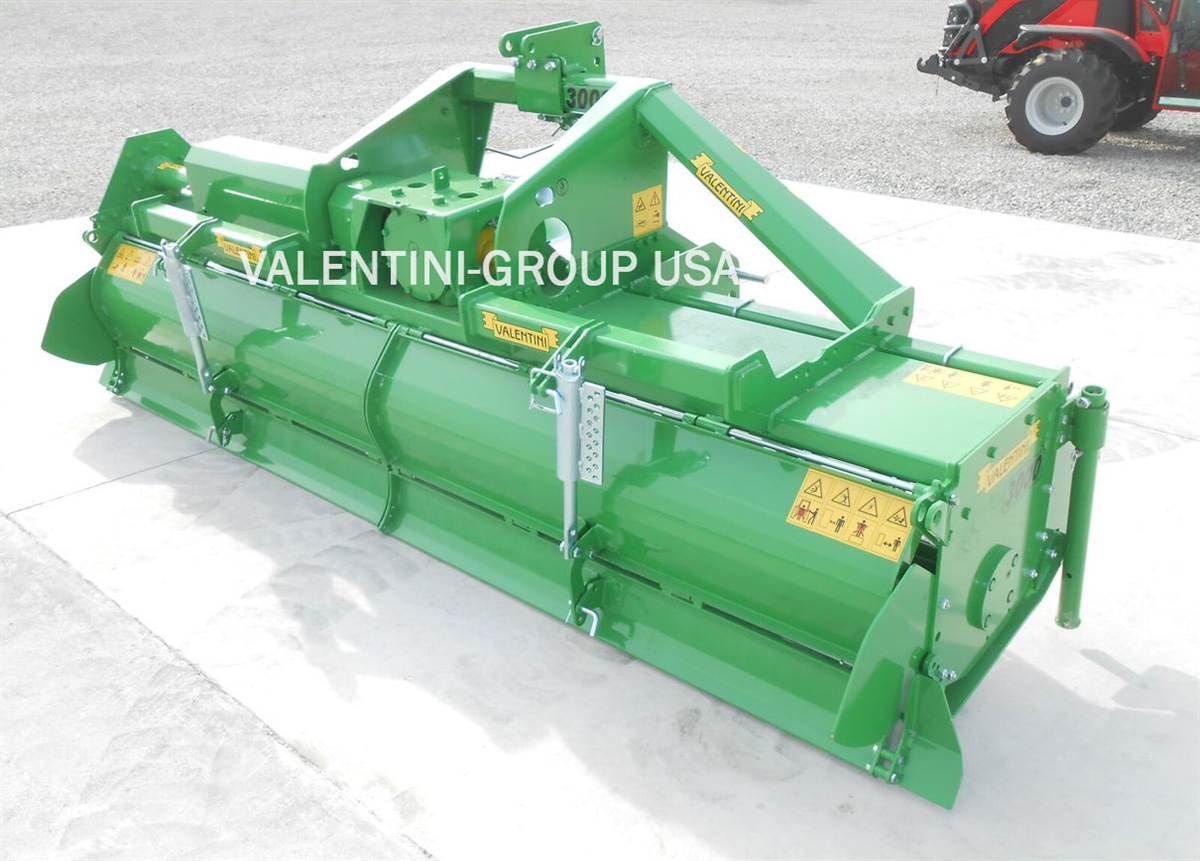

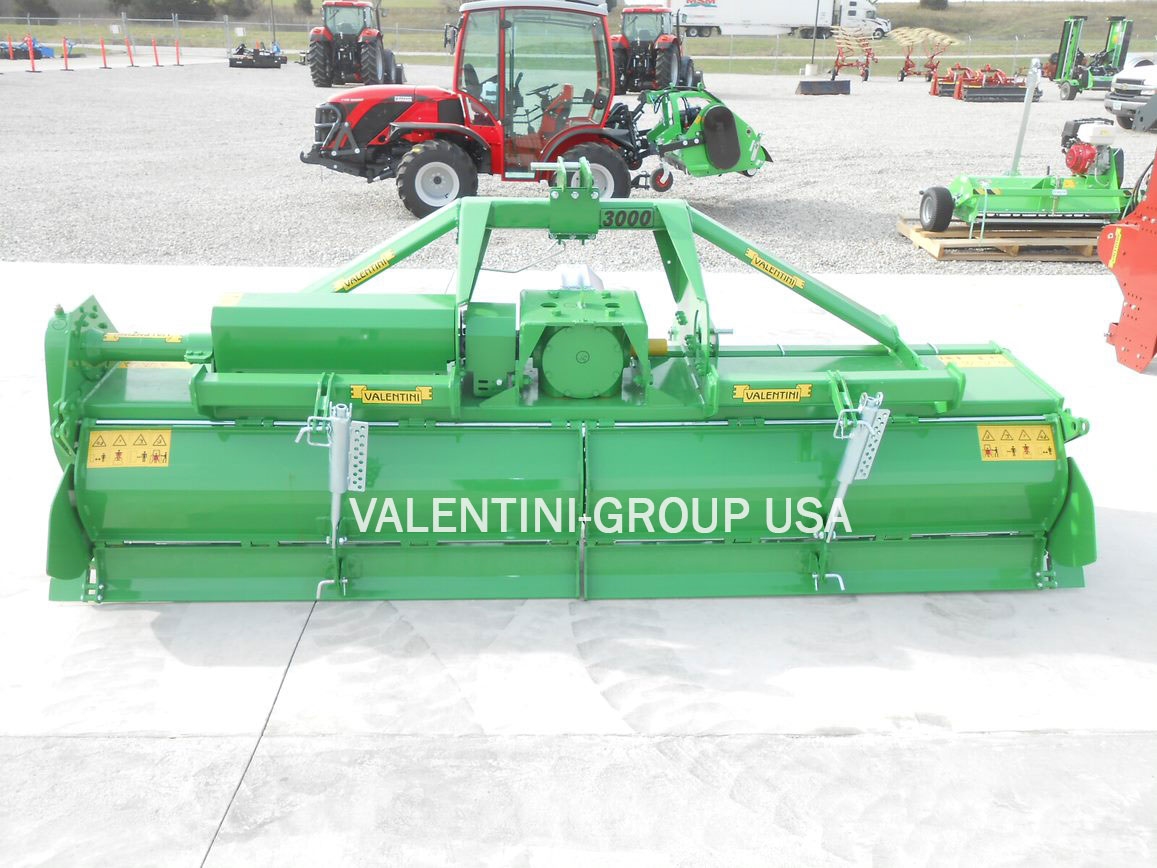

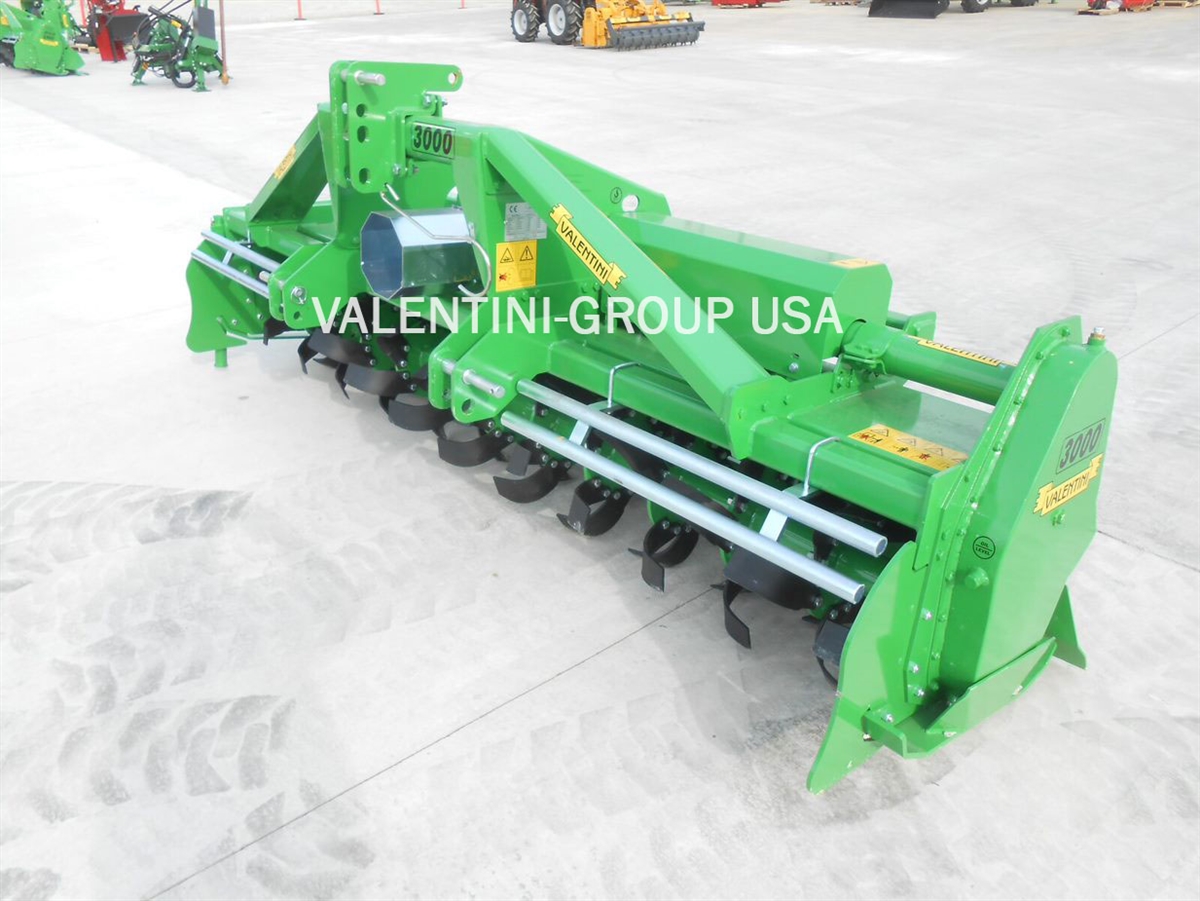

Valentini U3000, 10'-2" 3PT Rotary Tiller



Alternative Views:




Availability:: Usually Ships in 1-4 Weeks
Product Code: U3000


Description



GENERAL FEATURES:
  • Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
  • Side Gear Drive System Is In An Oil Bath Gear Box.
  • Skid Shoes For Depth Control Is Standard.
    • For Greater Efficiency, Consider The Optional Rear Roller.
  • Dual Rotor Scraper Blades (On The Inside Rotor Ends) Prevent Material From Wrapping To Protect Rotor Seals.
  • Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
  • Parking Stand & Rear Ridge Leveling Plates Are Standard.
  • Tiller Includes a 1-3/8", 21 Spline 1000RPM, Cam Clutch Protected PTO Shaft!
    • It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
      • No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
    • Large 1-3/4", 20 Spline, 1000RPM is Available (for the Tractor Side) Separately.
    • To Accommodate Severe Duty Service, Gearbox Output Shaft is 1-3/4", 20 Spline 1000RPM.
  • Sample Video Shows Tiller w/Roller & Attached to a Tractor - Tractor & Roller are NOT Included in This Listing.
SPECIFICATIONS:
  • Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
  • 1000RPM Gearbox is Suitable for 100 to 170HP, PTO.
  • Tills a 10'-2" Wide Path.
  • Overall Width is 10'-10".
  • Working Depth is 11"!
  • Rotor Has 13 Flanges & Total of 72 Blades.
    • 6 Blades Per Flange on 11 Center Flanges.
    • 3 Blades Per Flange on 2 Outside Flanges.
      • Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
  • Tiller Weight: 2,494lb's (less PTO Shaft, Pallet/Crating, etc.).
  • Specifications are based on manufacturer provided data & subject to change.
