U2500 Heavy Duty Rotary Tiller:
8'-6" Path, 11" Working Depth
Suitable for 80-170HP

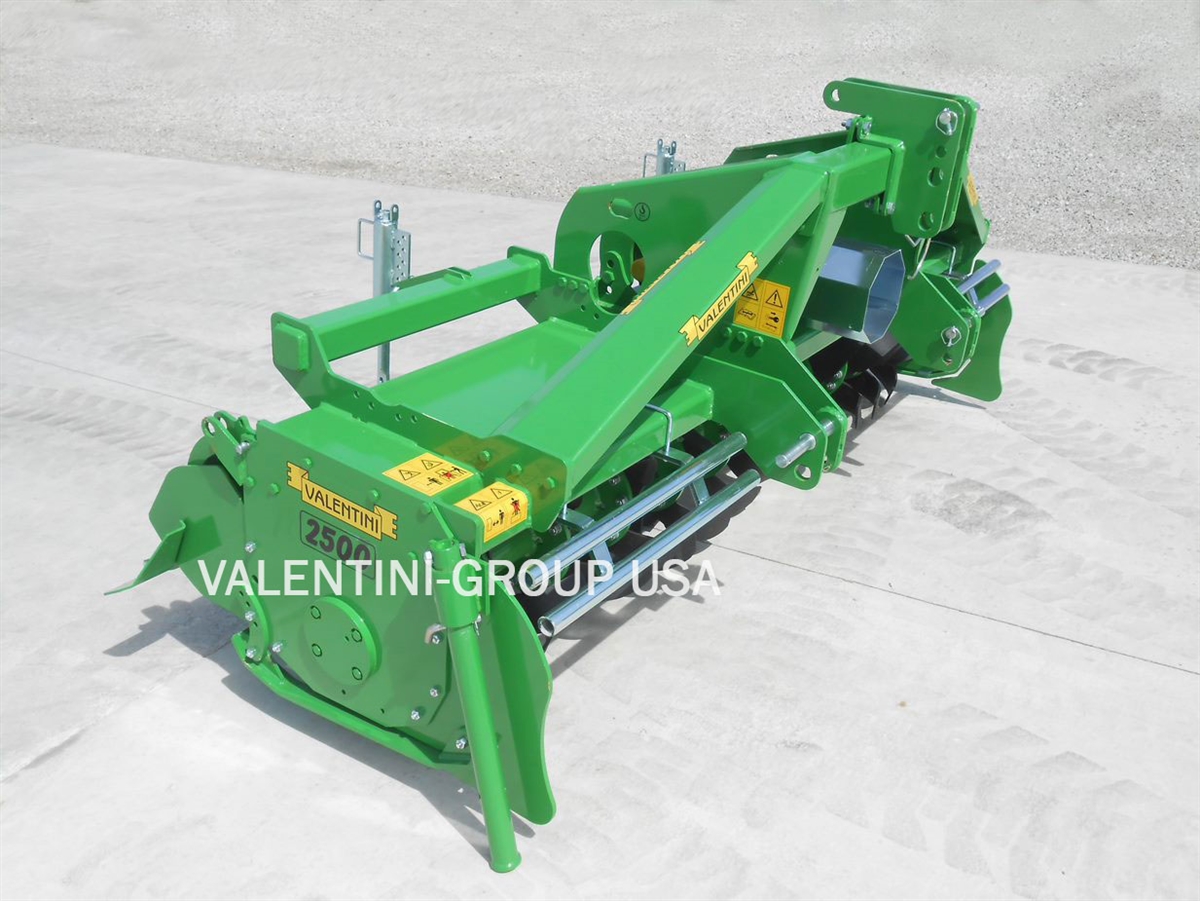

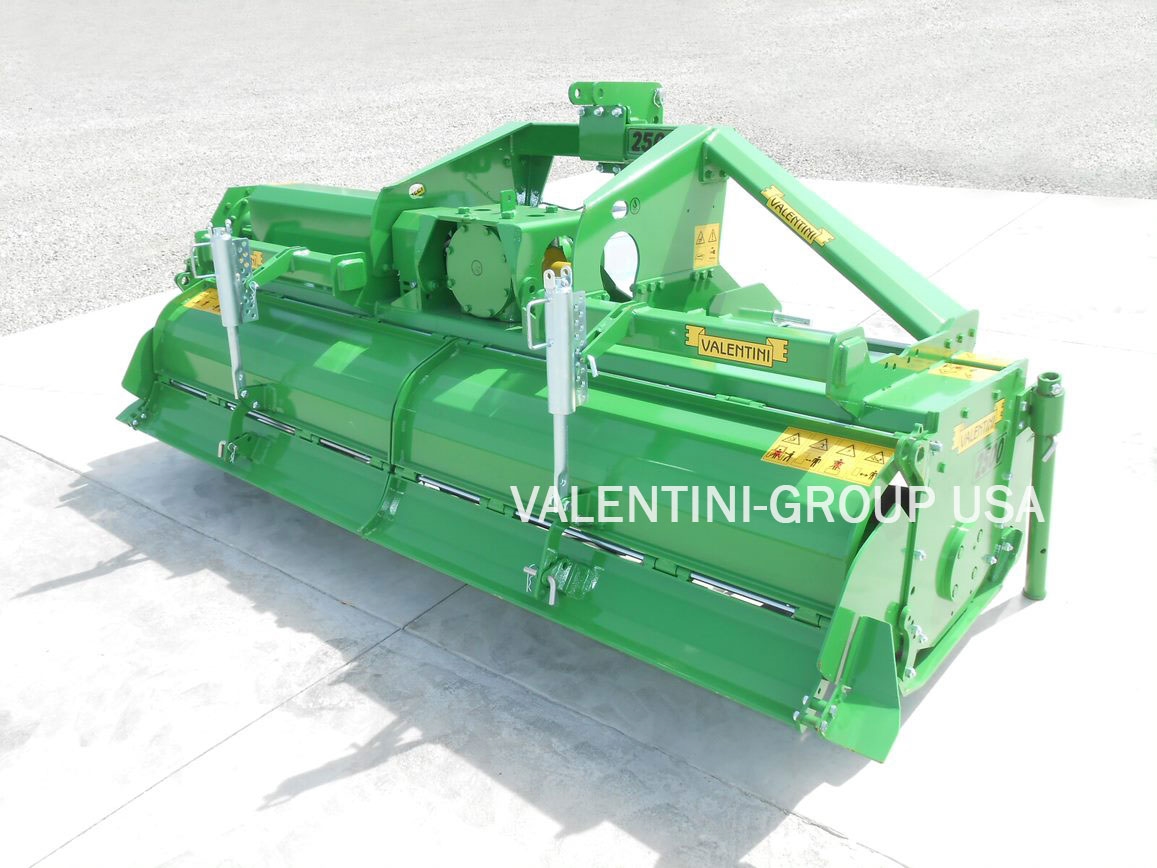

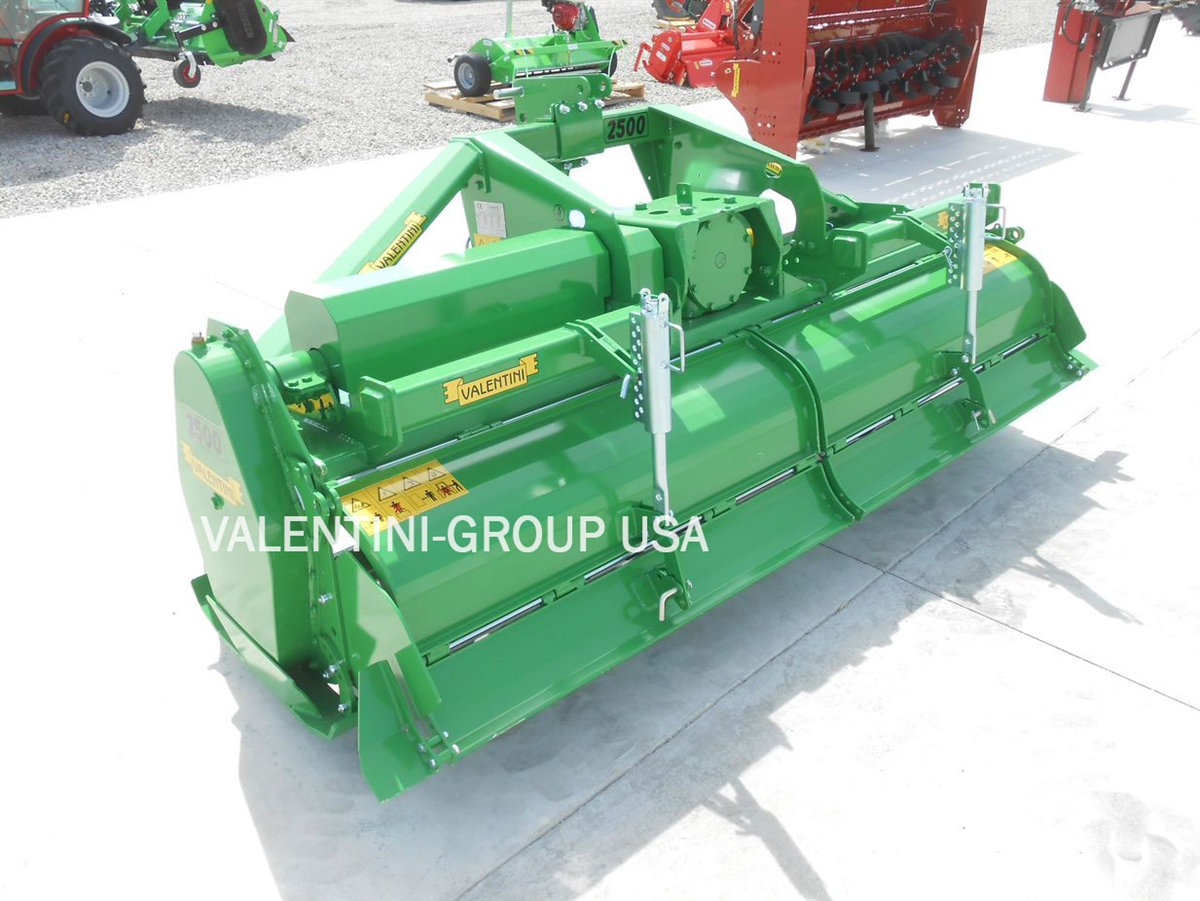

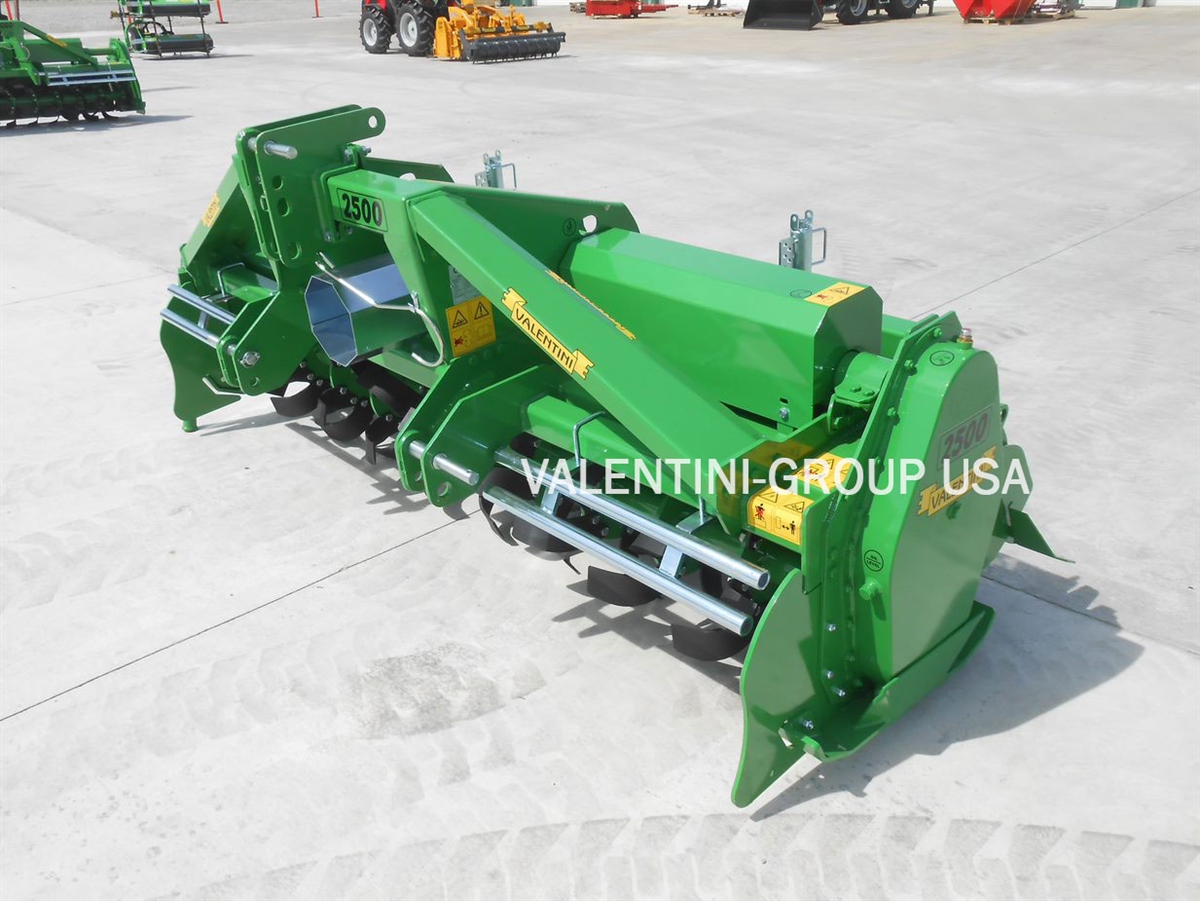

Valentini U2500, 8'-6" 3-Point Rotary Tiller





Availability:: Usually Ships in 1-4 Weeks
Product Code: U2500


Description



GENERAL FEATURES:
  • Valentini Uses Italian Made Gearboxes with the Largest Sumps for Cooler Operation & Longer Life!
  • Side Gear Drive System is in an Oil Bath Gear Box.

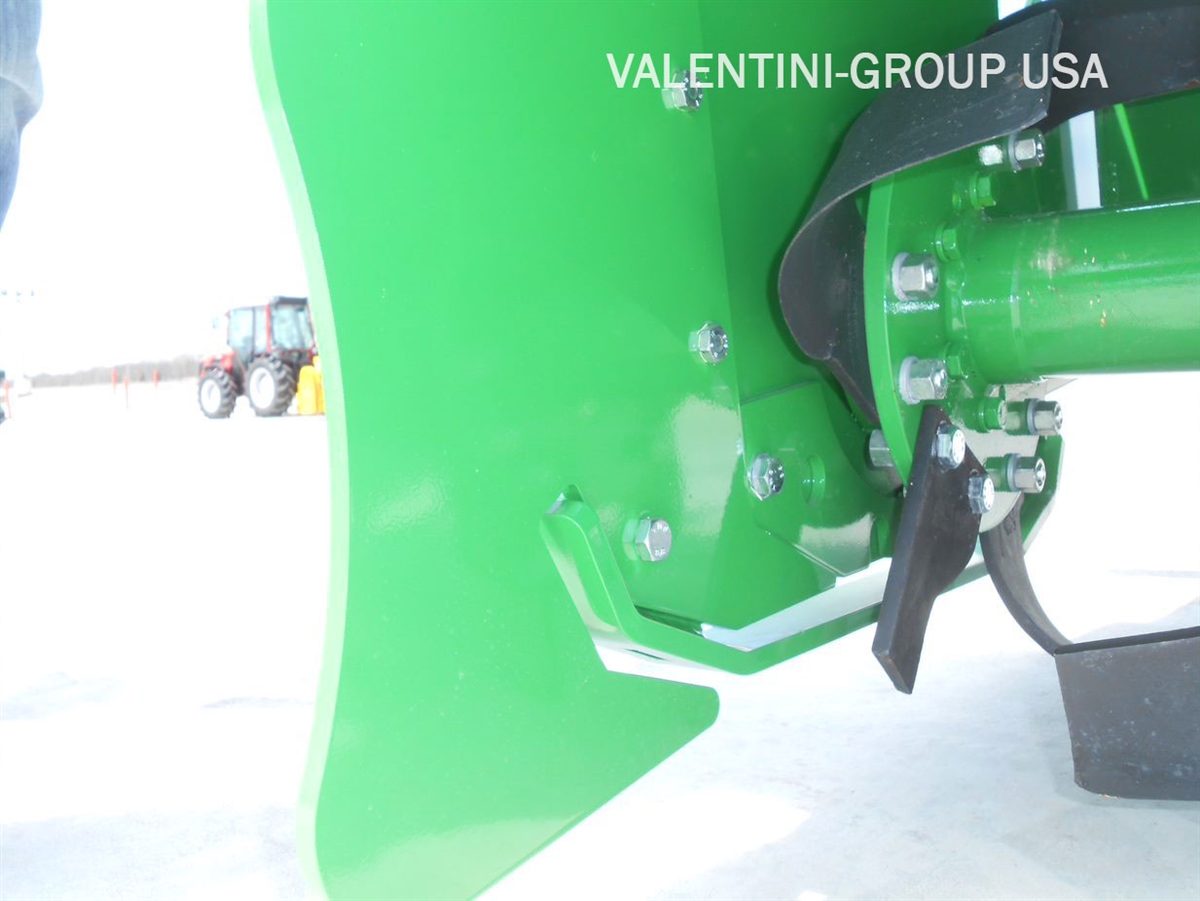

  • Skid Shoes for Depth Control is Standard.
    • For Greater Efficiency, consider the optional Rear Roller.
  • Dual Rotor Scraper Blades (on the Inside Rotor Ends) prevent Material from Wrapping to Protect Rotor Seals.
  • Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
  • Parking Stand & Rear Ridge Leveling Plates are Standard.
  • Tiller Includes a 1-3/8", 21 Spline 1000RPM, Cam Clutch Protected PTO Shaft!
    • It doesn't get any better than a Cam Clutch: The most efficient & reliable Driveline Protection Available!
      • No Maintenance, Automatic Clearing & Resetting after Locked Rotor Conditions.
    • Large 1-3/4", 20 Spline, 1000RPM is available (for the Tractor side) separately.
    • To accommodate Severe Duty Service, the Gearbox Output Shaft is 1-3/4", 20 Spline 1000RPM.
  • Sample Video shows Tiller w/Roller - Roller is NOT included in this listing.
SPECIFICATIONS:
  • Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
  • 1000RPM Gearbox is Suitable for 80 to 170HP, PTO.
  • Tills a 8'-6" wide Path.
  • Overall width is 9'-2".
  • Working depth is 11"!

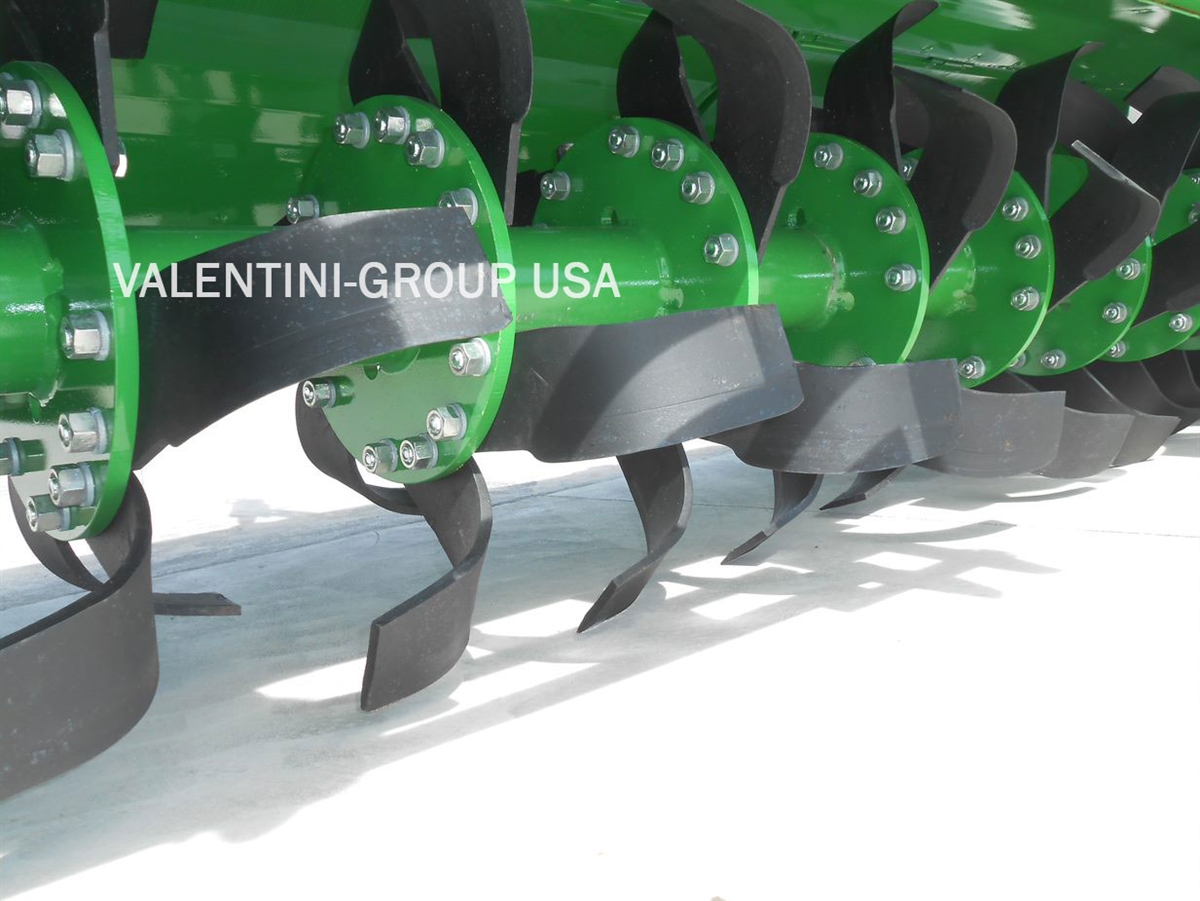

  • Rotor has 11 Flanges & a Total of 60 Blades.
    • 6 Blades per Flange on 9 Center Flanges.
    • 3 Blades per Flange on 2 Outside Flanges.
      • Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
  • Tiller Weight: 2,356lb's (less PTO Shaft, Pallet/Crating, etc.).
  • Specifications are based on manufacturer provided data & subject to change.
