Valentini Uses Italian Made Gearboxes with the Largest Sumps For Cooler Operation & Longer Life!
-
Side Gear Drive System Is In An Oil Bath Gear Box.
-
Dual Rotor Scraper Blades (on the Inside Rotor Ends) Prevent Material From Wrapping To Protect Rotor Seals.
-
Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
-

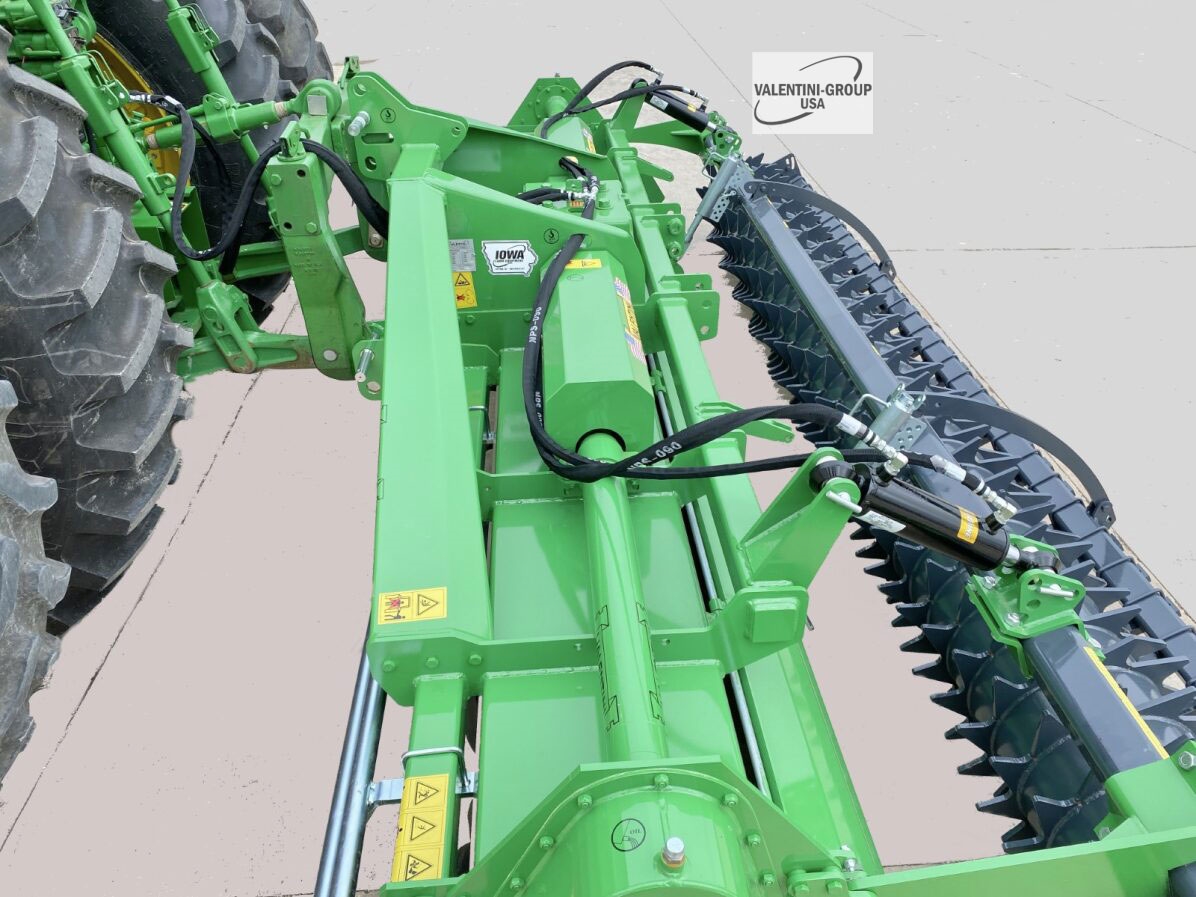

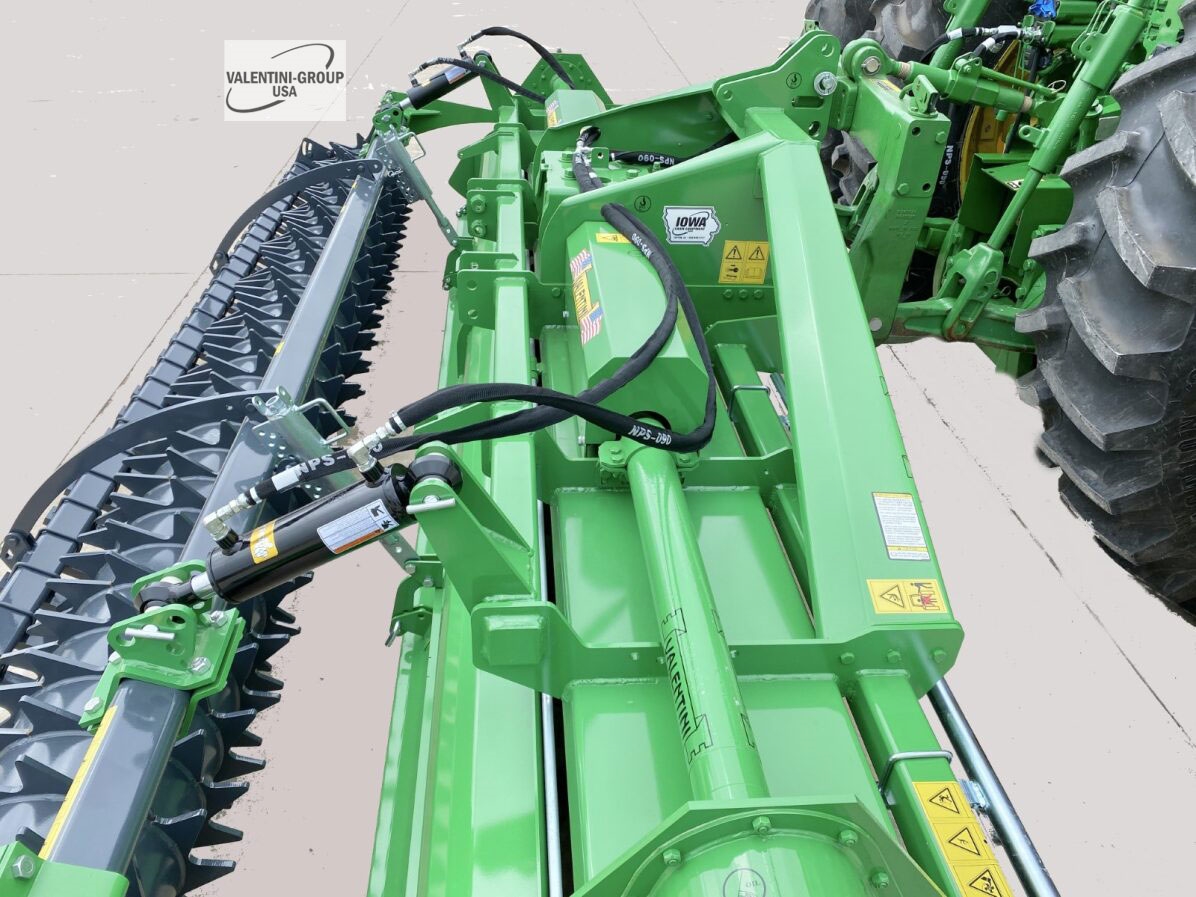

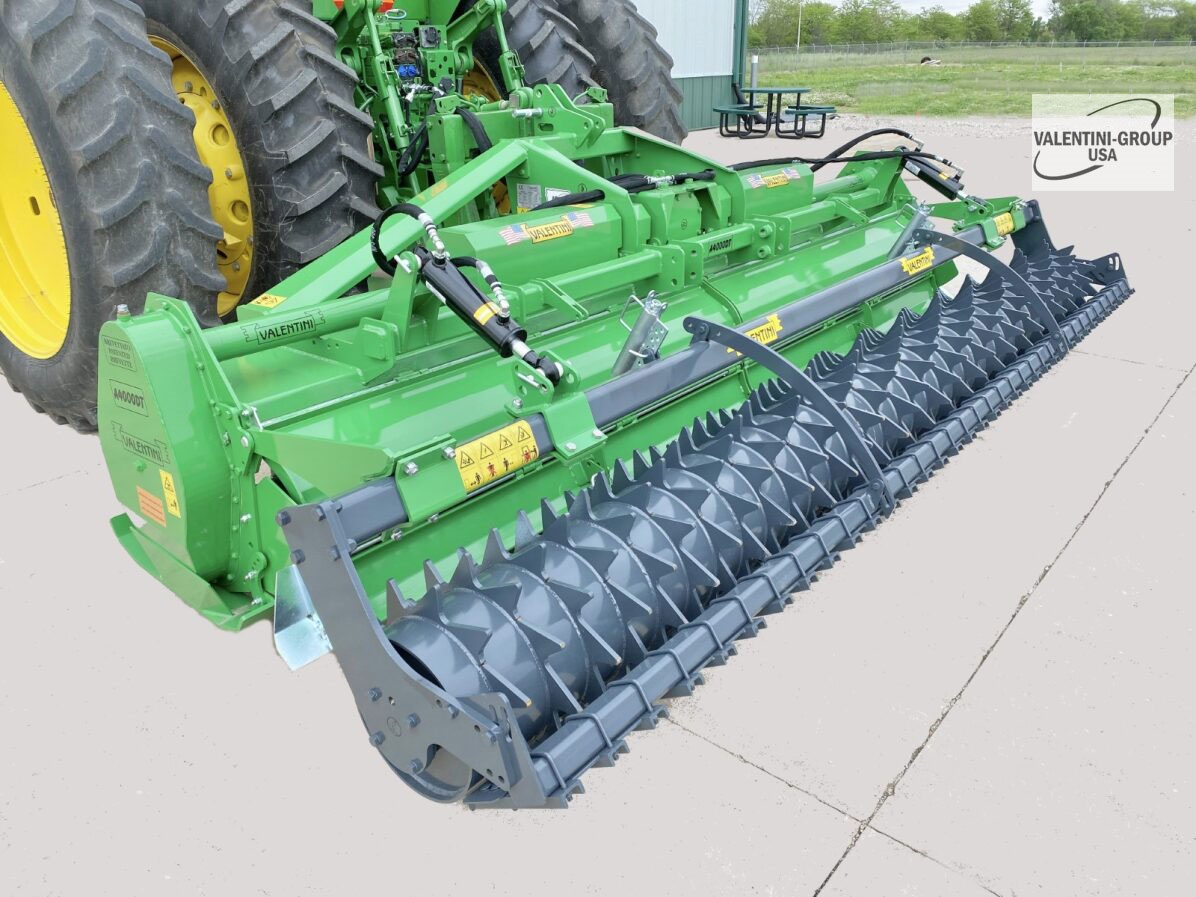

Dual Cylinder, Hydraulically Adjusted Packer Roller Provides Excellent Means of Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
-
Blade Protecting Counter Flange Kit:
-
Unique & Patented Labyrinth Seals Ensure Bearings are Protected From Dirt!
-
Skid Shoes or Hydraulic Rear Roller For Working Depth Adjustment.
-
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
-
Front & Side Safety Guards for Personnel & Equipment Protection.
-
Tiller Includes 1000RPM, Cam Clutch Protected PTO Shaft!
-
Sample Video is of the U3000 Tiller, but this Listing is for the A4000DT Tiller w/Roller.
-
Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
-
1000RPM Gearbox is Suitable for 150 to 300HP, PTO.
-
Tills a 13'-5" Wide Path.
-
Overall Working Width: 14'-2".
-
Working Depth: 11"!
-

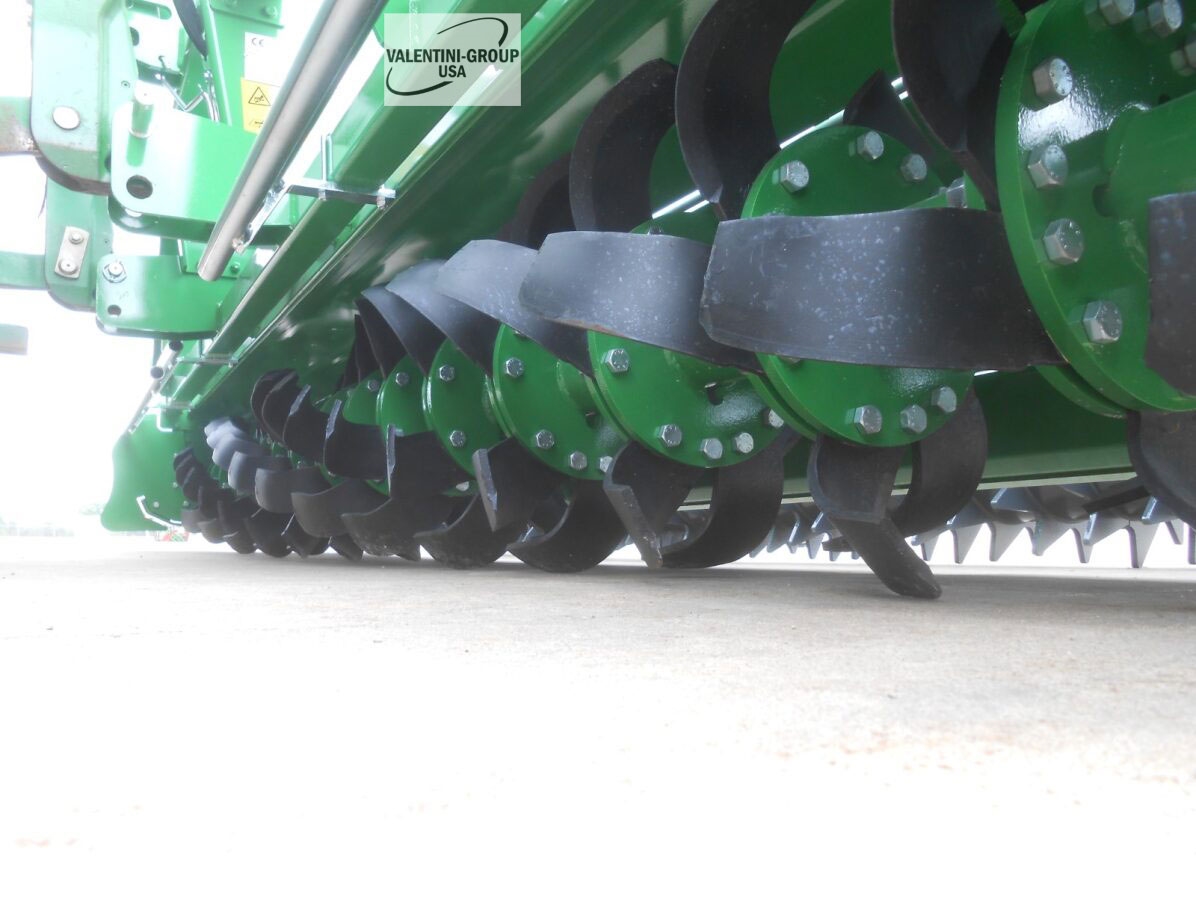

Rotor has 11 Flanges For a Total of 96 Blades.
-
6 Blades per Flange on 9 Center Flanges.
-
3 Blades Per Flange on 2 Outside Flanges.
-
Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
-
Tiller Weight: 4,410lb's (less PTO Shaft, Pallet/Crating, etc.).
-
Packer Roller Weight: 1,390lb's (less Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
