Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
-
Side Gear Drive System Is In An Oil Bath Gear Box.
-
Dual Rotor Scraper Blades (on the Inside Rotor Ends) prevent Material from wrapping to protect Rotor Seals.
-
Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
-

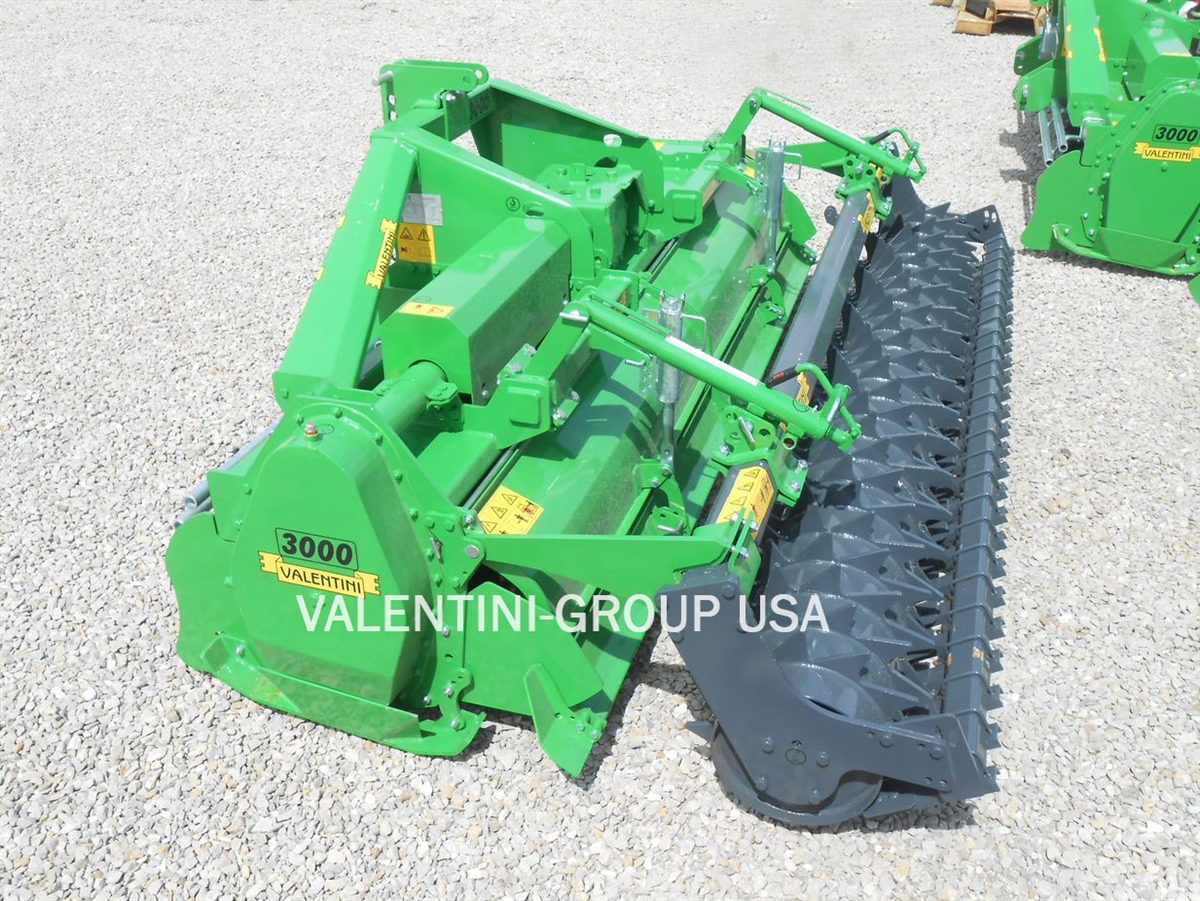

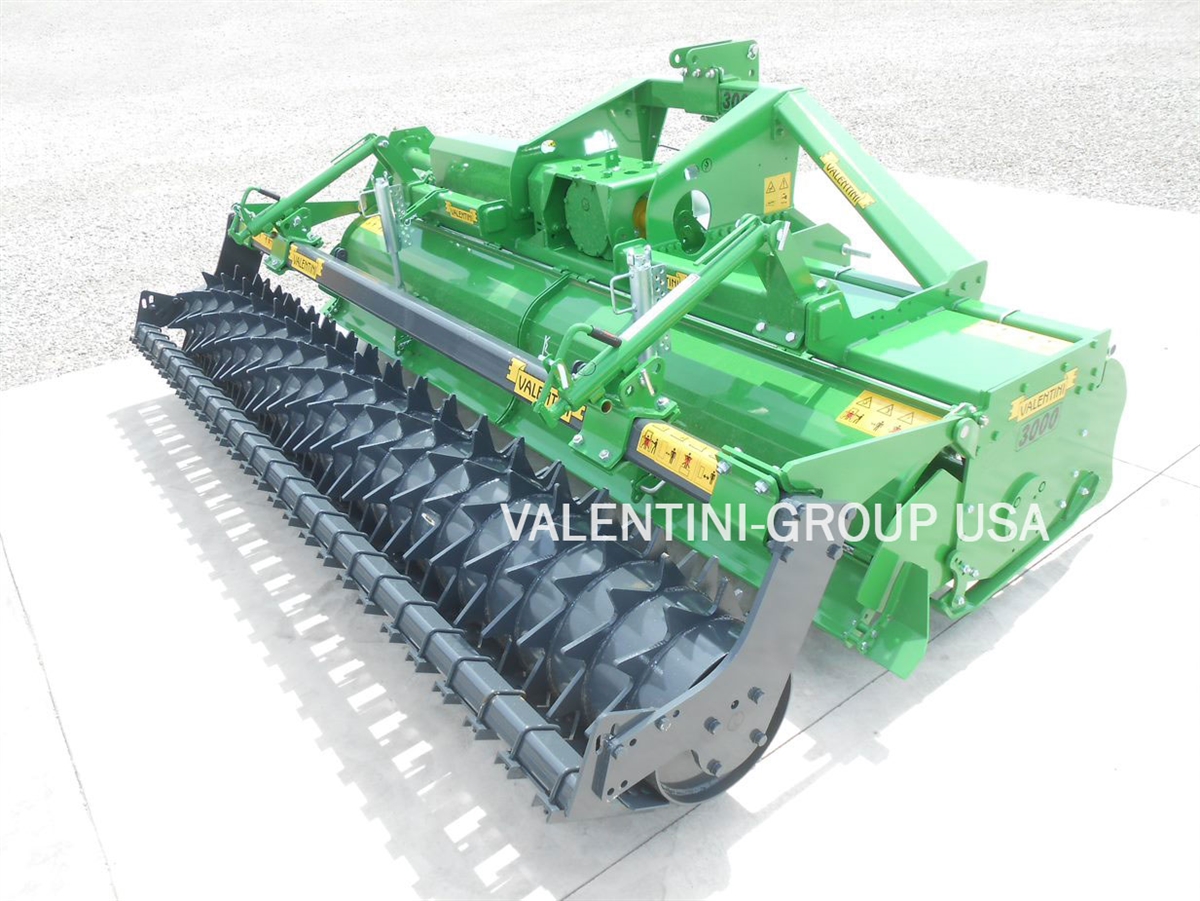

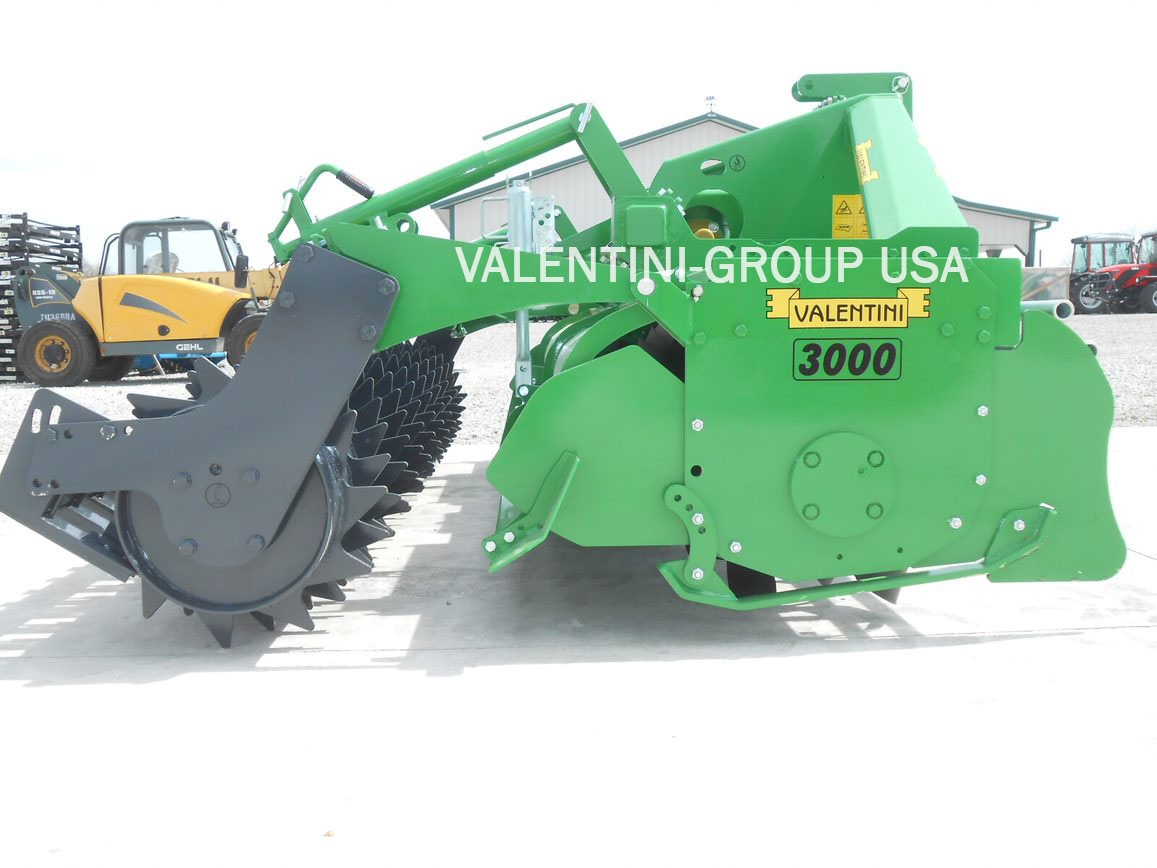

Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (superior to Skid Shoes) & Also Provides Soil Conditioning!
-
Extra Wide Roller For Knocking Down Any Outside Edge Soil Ridges!
-
Roller Includes Mud Scraper as Shown.
-
Rotor 'Counter Flange Kit' Minimizes Blade & Bolt Breakage In The Toughest & Rockiest Ground Conditions!
-
Tiller Includes a 1-3/8", 21 Spline 1000RPM, Cam Clutch Protected PTO Shaft!
-
For Severe Duty Service, The Gearbox Output Shaft & PTO Shafts are 1-3/4", 20 Spline 1000RPM.
-
It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
-
Sample Video is of the U3000 Tiller, But This Listing is For the A3000 Tiller w/Roller.
-
Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
-
1000RPM Gearbox is Suitable for 130 to 200HP, PTO.
-
Tills a 10'-2" Wide Path.
-
Overall Working Width is 10'-10".
-
Working Depth is 11"!
-

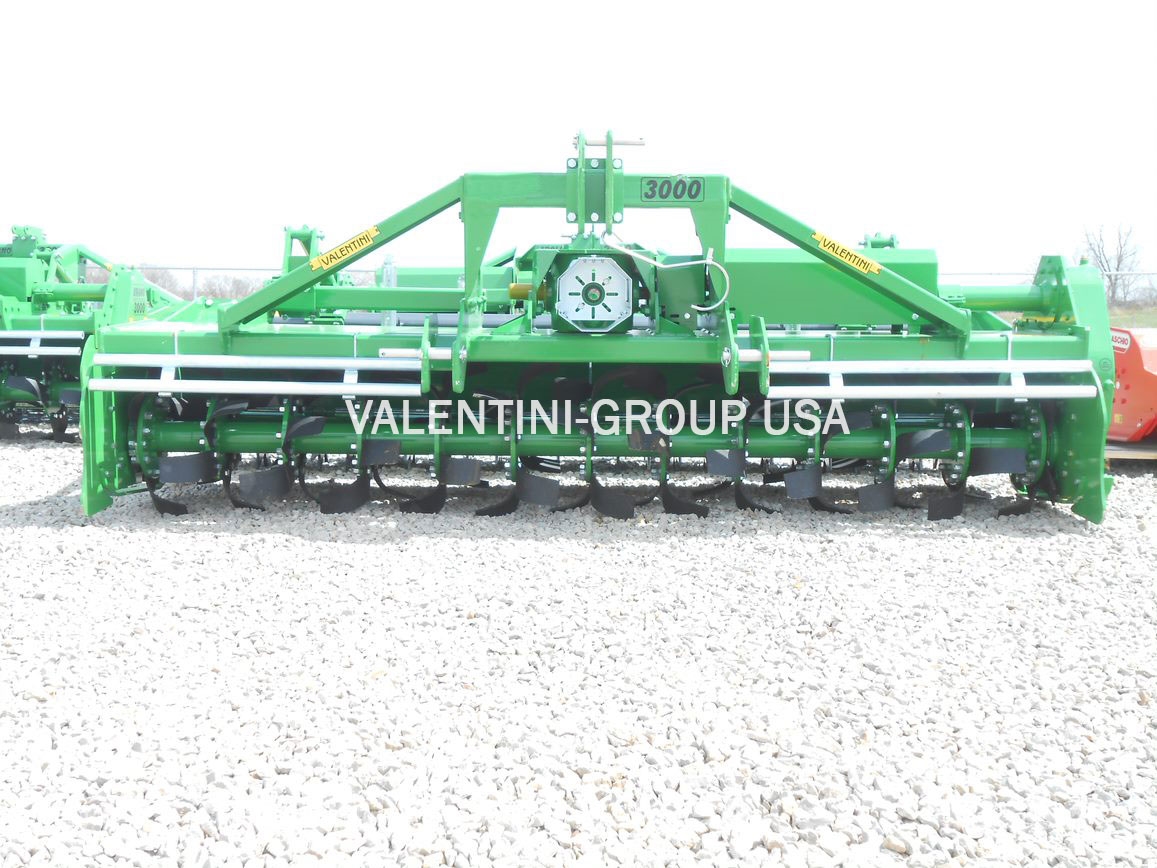

Rotor has 13 Flanges For a Total of 72 Blades.
-
6 Blades Per Flange on 11 Center Flanges.
-
3 Blades Per Flange on 2 Outside Flanges.
-
Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
-
Tiller Weight: 2,800lb's (less PTO Shaft, Pallet/Crating, etc.).
-
Packer Roller Weight: 1,300lb's (less Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
