Valentini Uses Italian Made Gearboxes with the Largest Sumps & Hold The Most Lubricant For Cooler Operation & Longer Life!
-

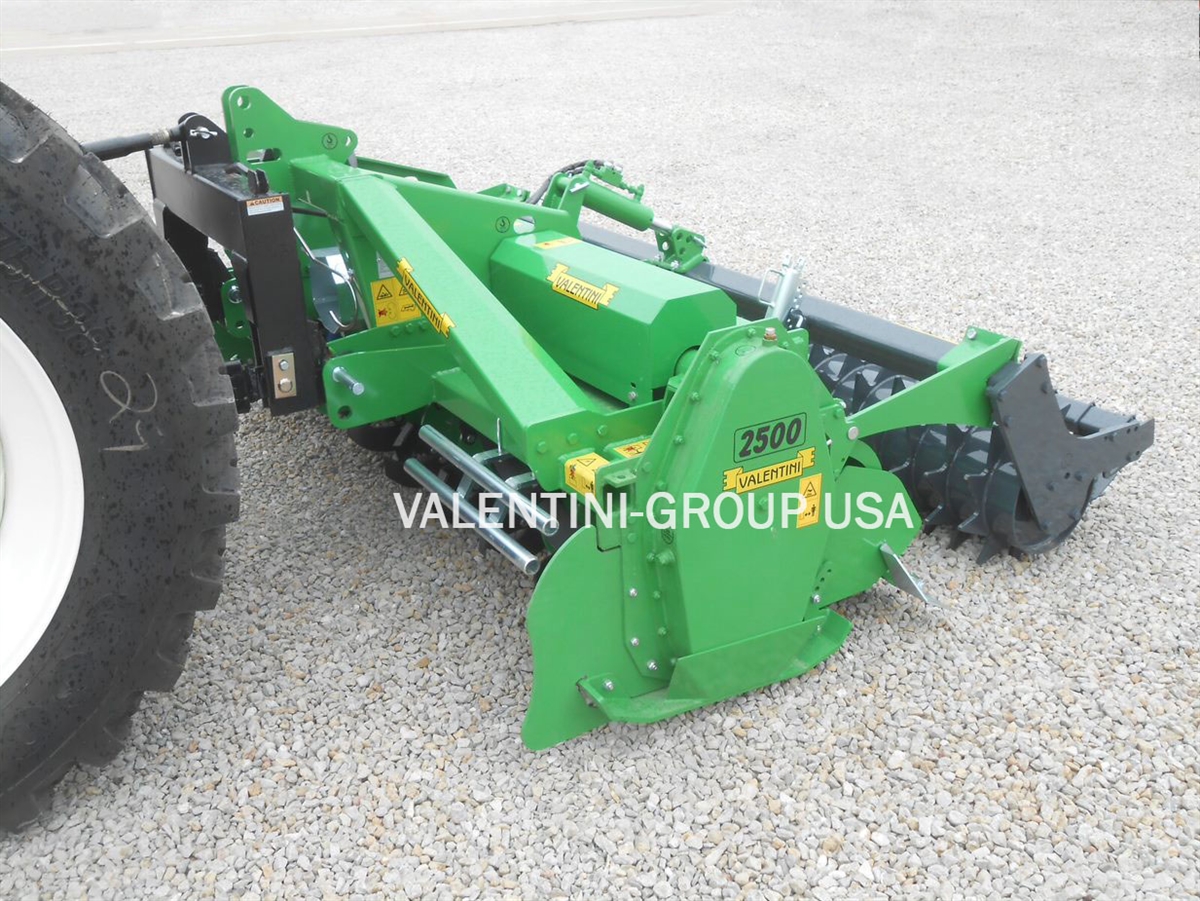

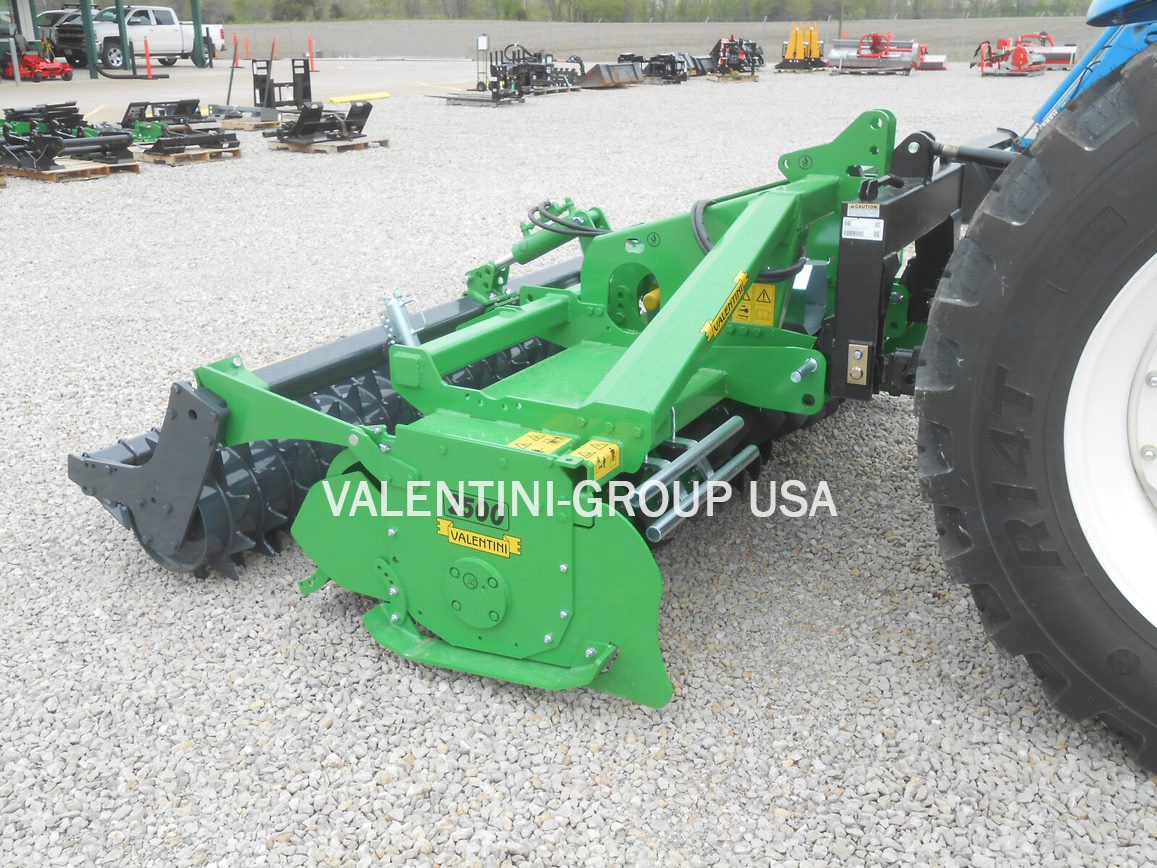

Side Gear Drive in Oil Bath Gear Box.
-
Dual Rotor Scraper Blades (On The Inside Rotor Ends) Prevent Material From Wrapping To Protect Rotor Seals.
-
Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
-

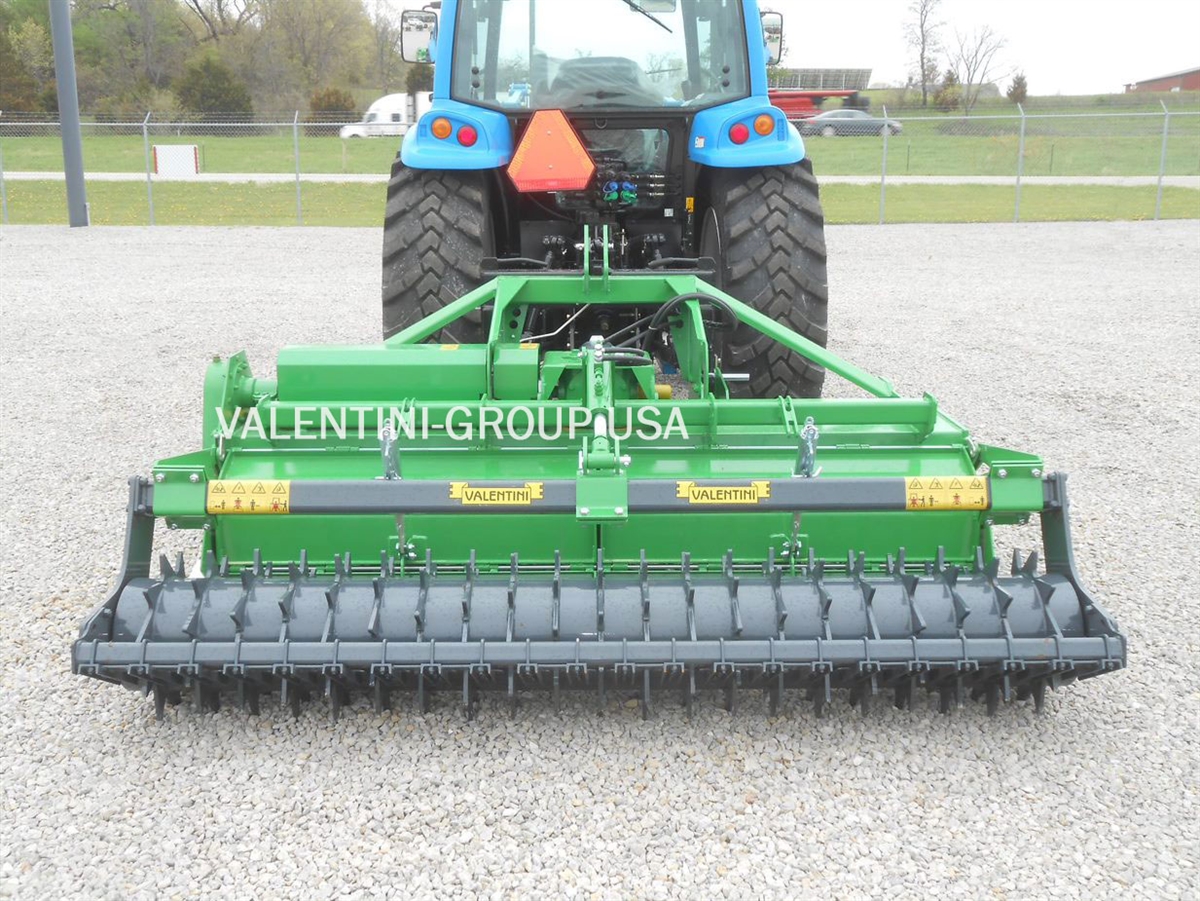

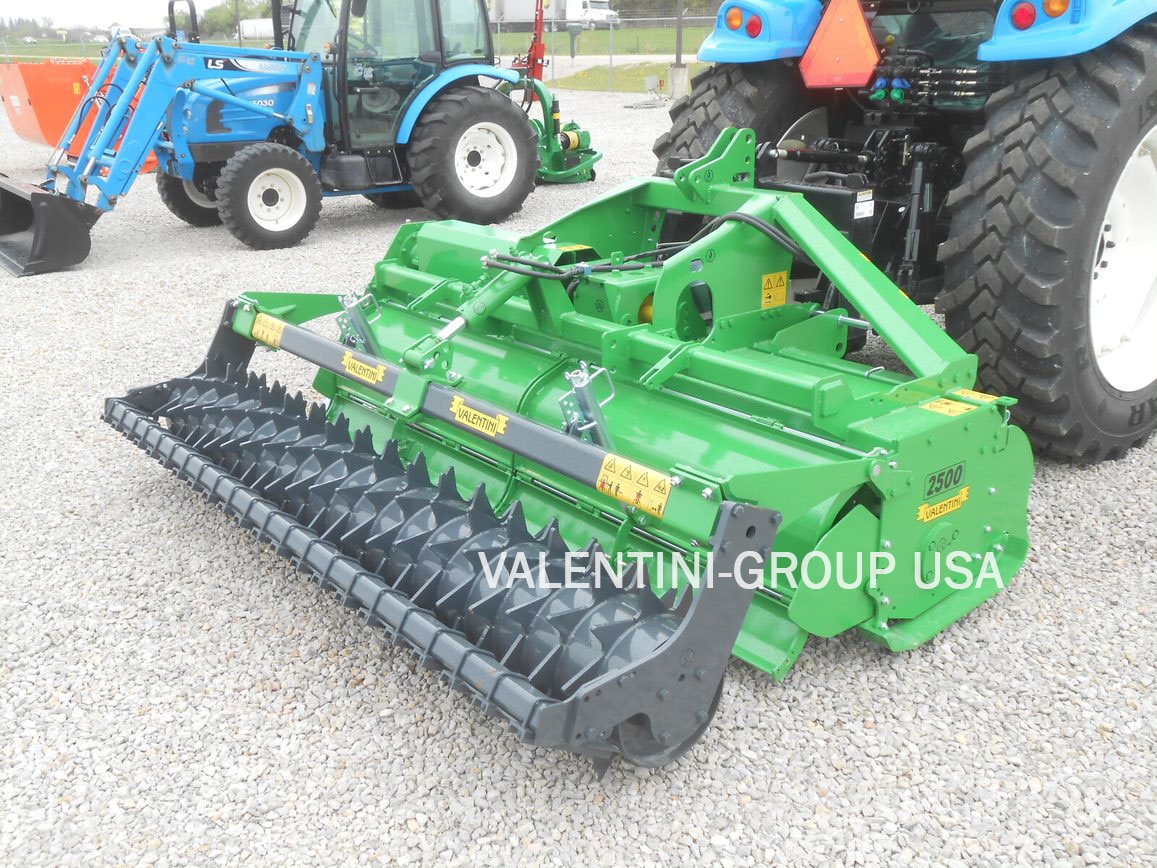

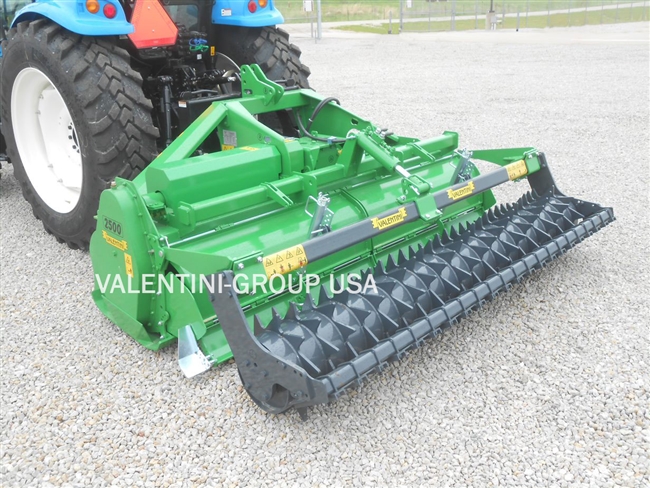

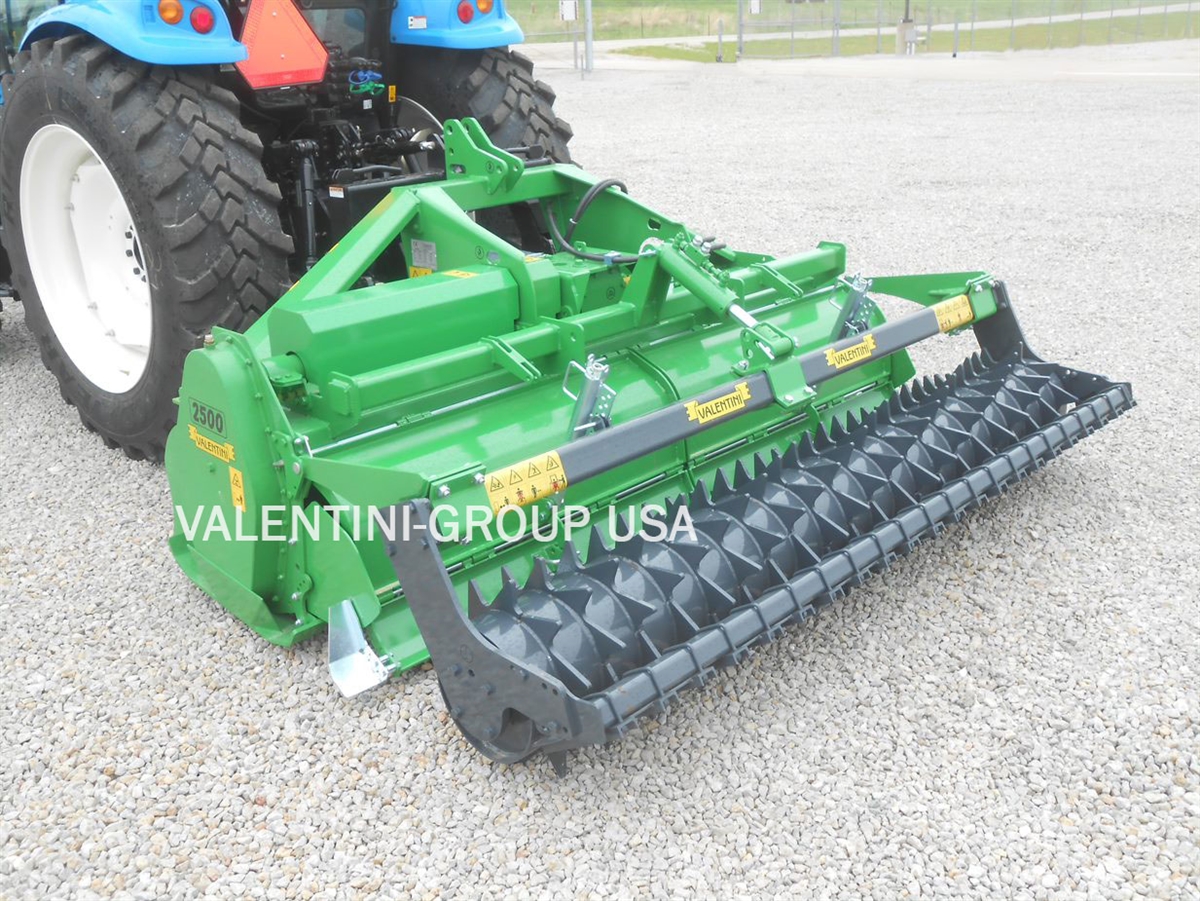

Hydraulically Adjusted Packer Roller Provides Excellent Means of 'On-The-Fly' Working Depth Control (superior to Skid Shoes) & Also Provides Soil Conditioning!
-
Roller Includes Mud Scraper as Shown.
-
Tiller Includes a 1-3/8", 6 Spline 540RPM, Shear Bolt Protected PTO Shaft!
-
Some Sample Photos Show Tiller Attached to a Tractor for Reference Only - Tractor is Not Included!
-
Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
-
540RPM Gearbox is Rated for 80 to 130HP, PTO.
-
Tills a 8'-6" Wide Path.
-
Working Depth is 11"!
-

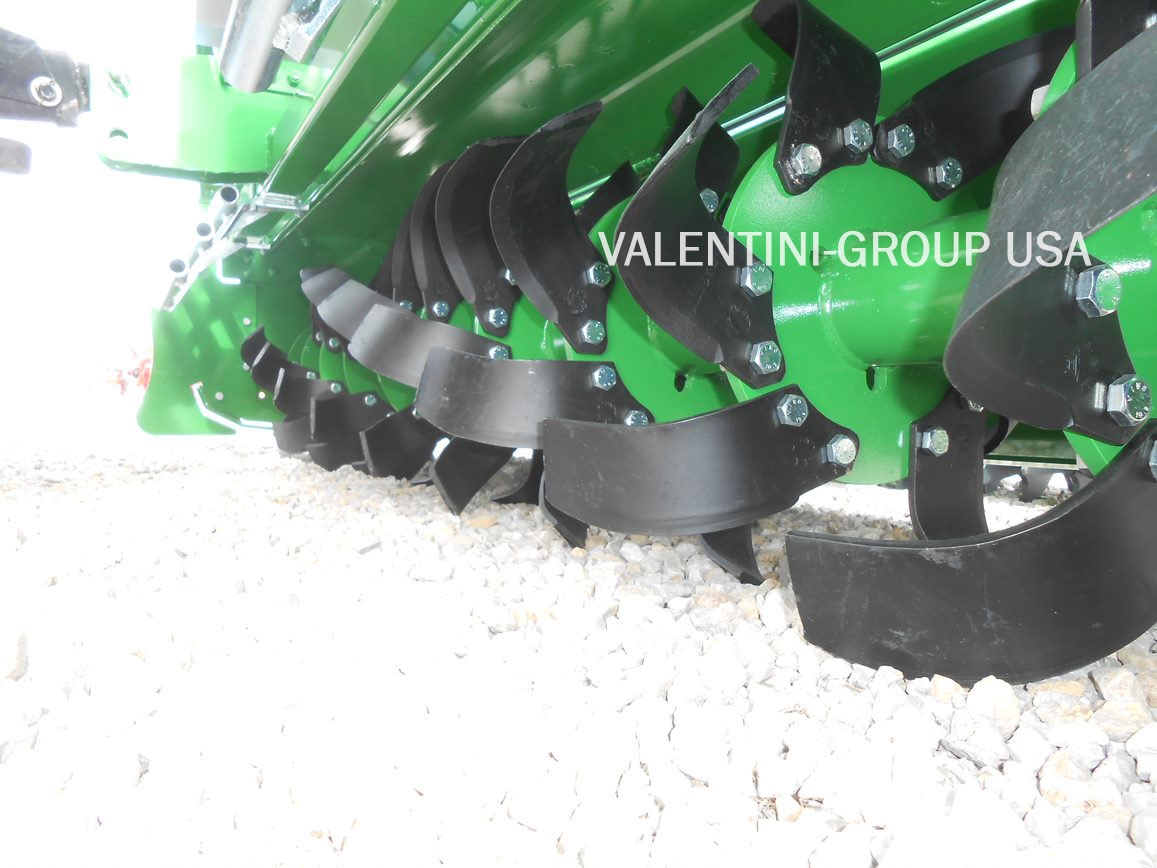

Rotor Has 11 Flanges with 6 Blades per Flange for a Total of 60 Blades!
-
6 Blades per Flange on 9 Center Flanges.
-
3 Blades Per Flange on 2 Outside Flanges.
-
Each Outside Flange has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
-
Tiller Weight: 2,373lb's (less PTO Shaft, Pallet/Crating, etc.).
-
Packer Roller Weight: 933lb's (less Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
