Crushers 'Diminishing Chamber' is Comprised of the Following:
-
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
-
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
-
Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
-
Crusher Body Internal Hardox Lining is Replaceable.
-
Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
-
Rear Gate Adjusters Include Shock Absorption System.
-
Extreme Service Duty Rotor is Shock & Wear Resistant.
-
19" Rotor Working Diameter, Tip to Tip.
-
1" Diameter Tooth Shanks & Holders.
-
Central & Side Gear Drives in Oil Bath Gearboxes.
-
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
-
Hydraulically Adjusted Rear Skid Shoes.
-
Safety Covers & Guards.
-
Crusher Includes Cam Clutch Protected Main PTO Shaft.
-

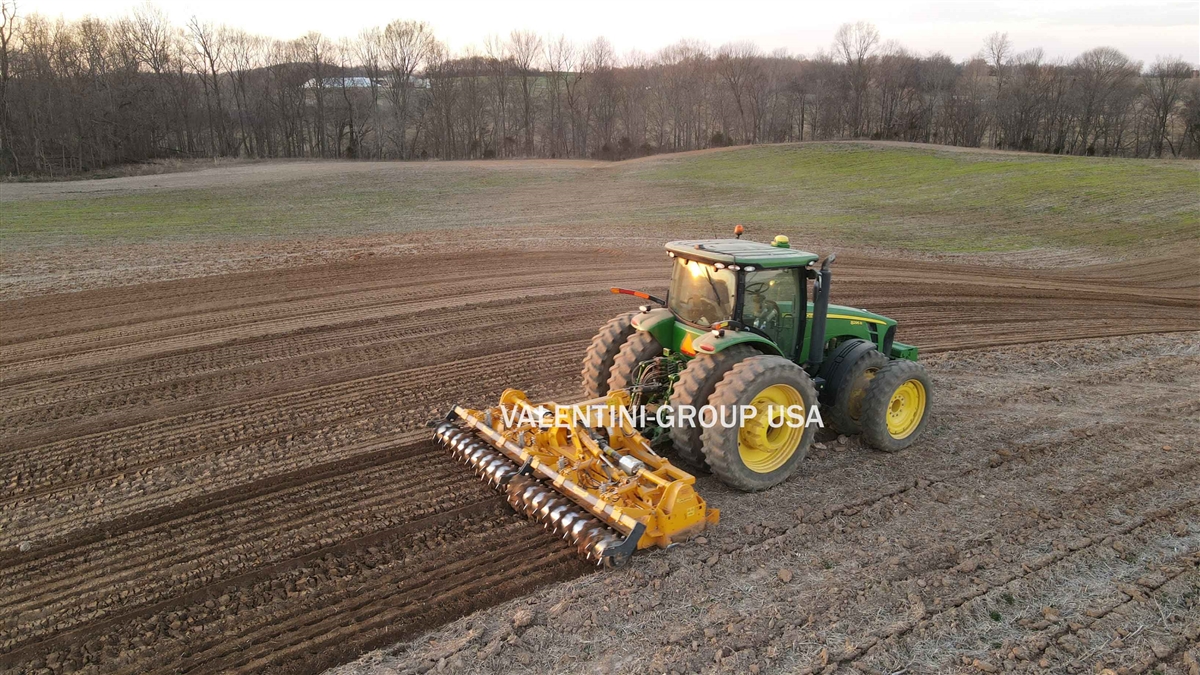

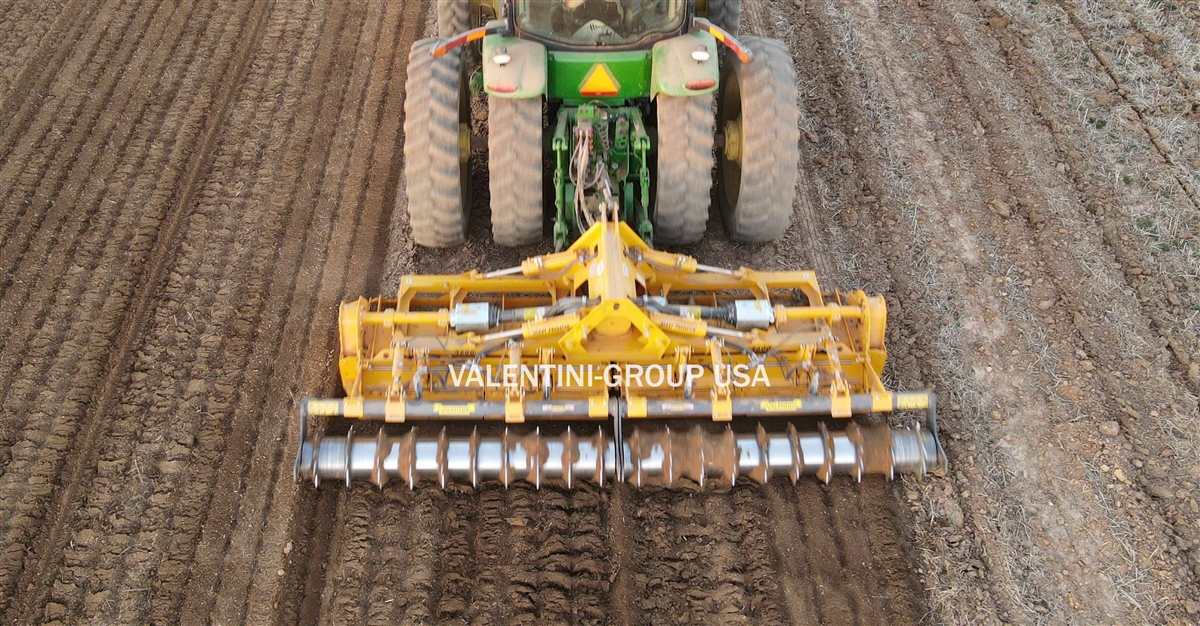

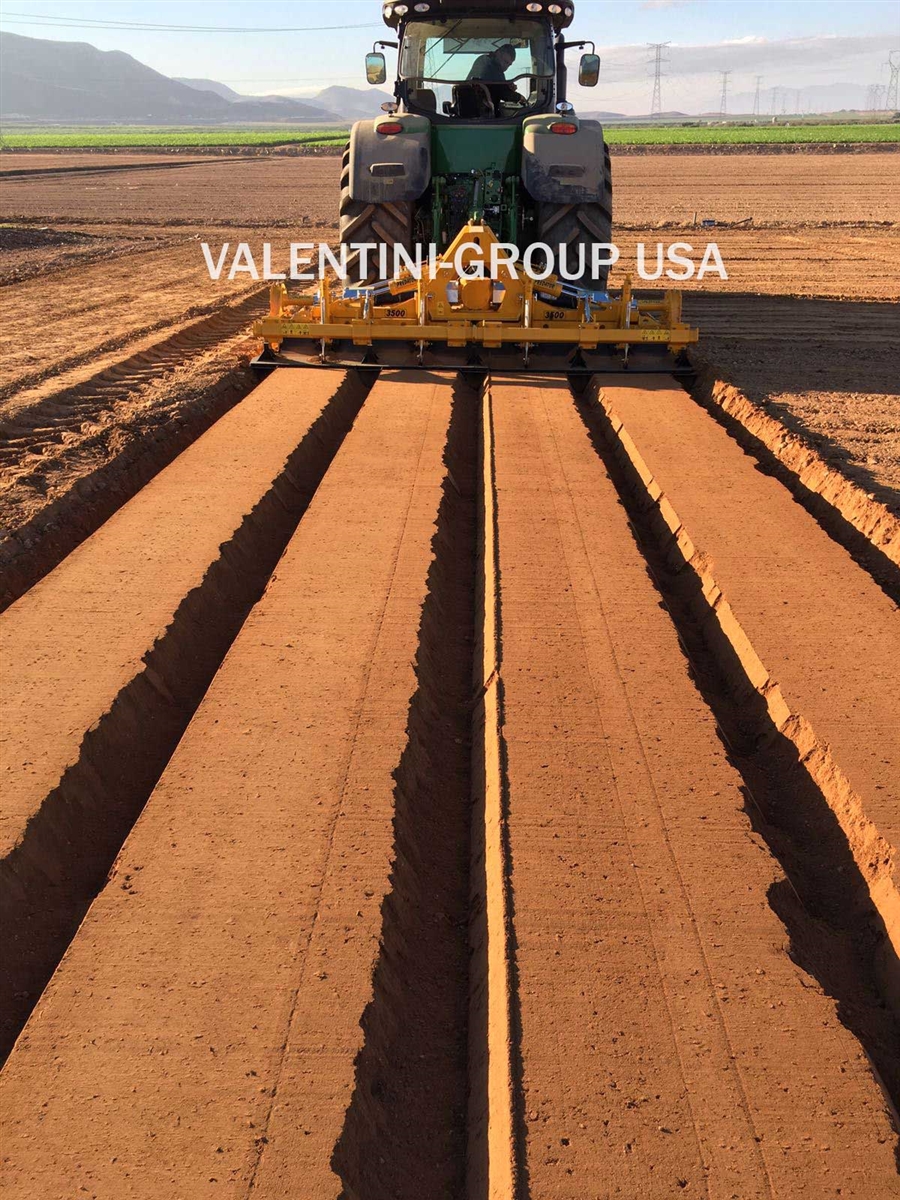

Sample Images Show Tractor For Reference Only - Tractor is Not Included.
-
Category 2, 3-Point Hitch.
-
Suitable for 210 to 260HP, PTO Tractors.
-
Rotor Working Diameter, Tip to Tip: 19".
-
Working Width: 11'-4".
-
Overall Width: 12'-2".
-
Quantity of Teeth: 335.
-
Working Depth on Non-Passive Surfaces: 3".
-
Working Depth on Passive Surfaces: 6".
-
Weight: 9,560LBS (less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
