Crushers 'Diminishing Chamber' is Comprised of the Following:
-
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
-
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
-
Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
-
Crusher Body Internal Hardox Lining is Replaceable.
-

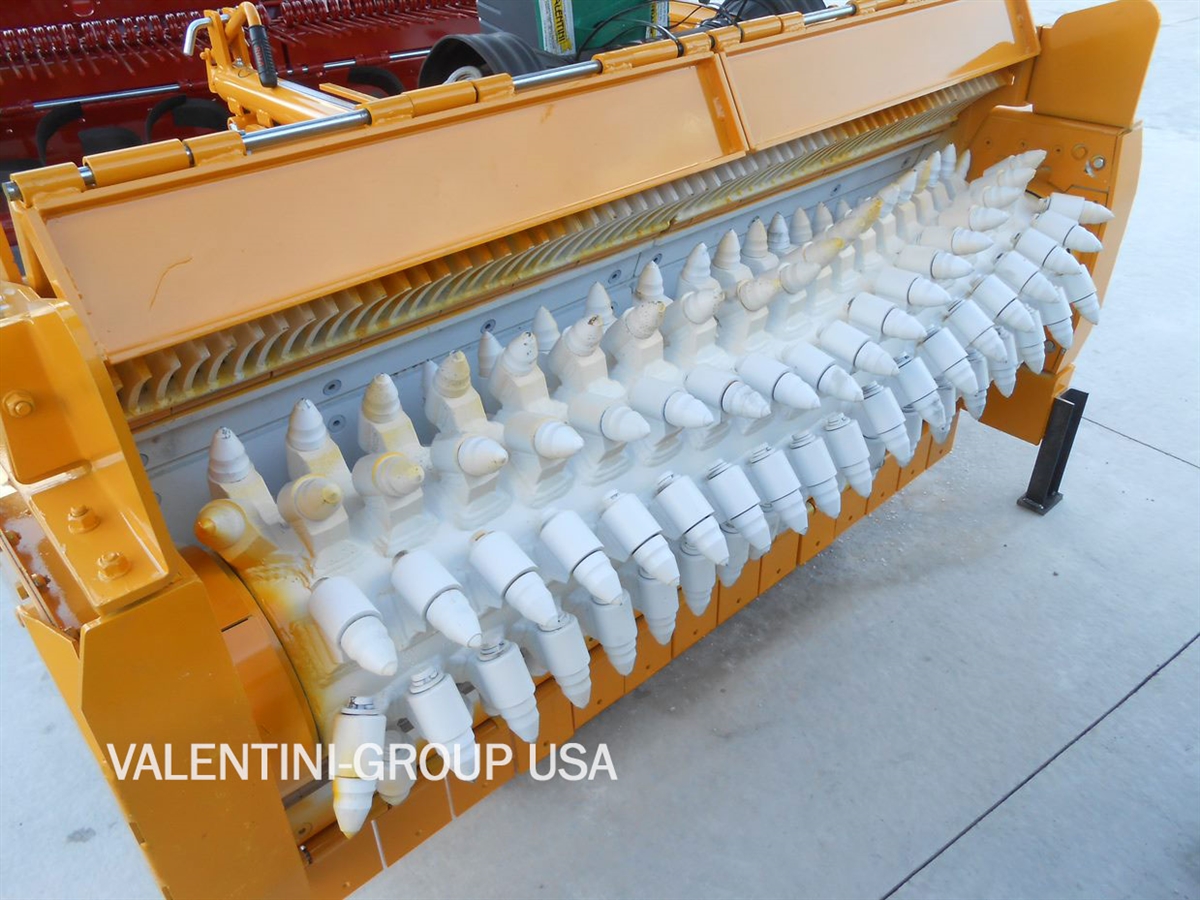

Extreme Service Duty Rotor is Shock & Wear Resistant.
-
19" Rotor Working Diameter, Tip to Tip.
-
1" Diameter Tooth Shanks & Holders.
-
Central & Side Gear Drives in Oil Bath Gearboxes.
-
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
-
Wear Plates/Skid Shoes on Both Sides of Crusher.
-
Safety Covers & Guards.
-
Crusher Includes Cam Clutch Protected Main PTO Shaft.
-

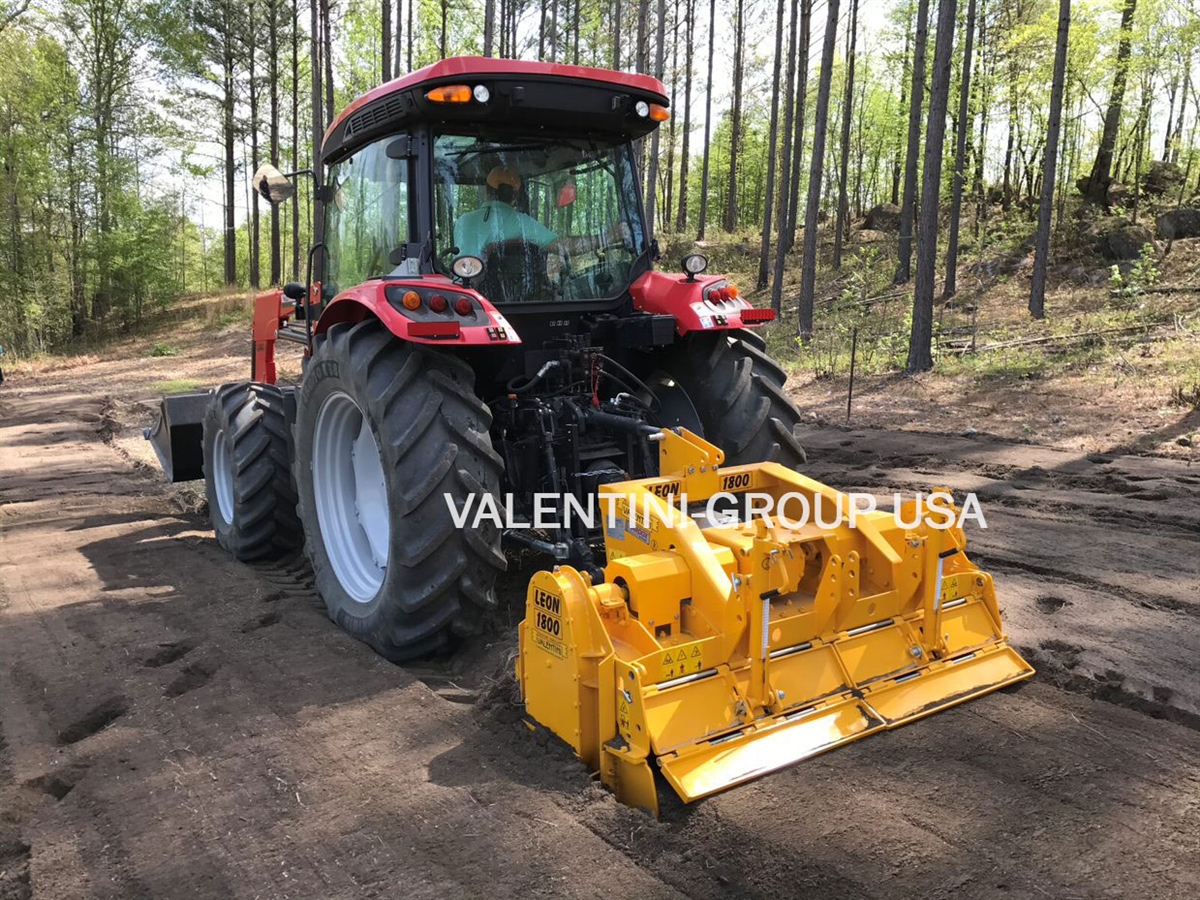

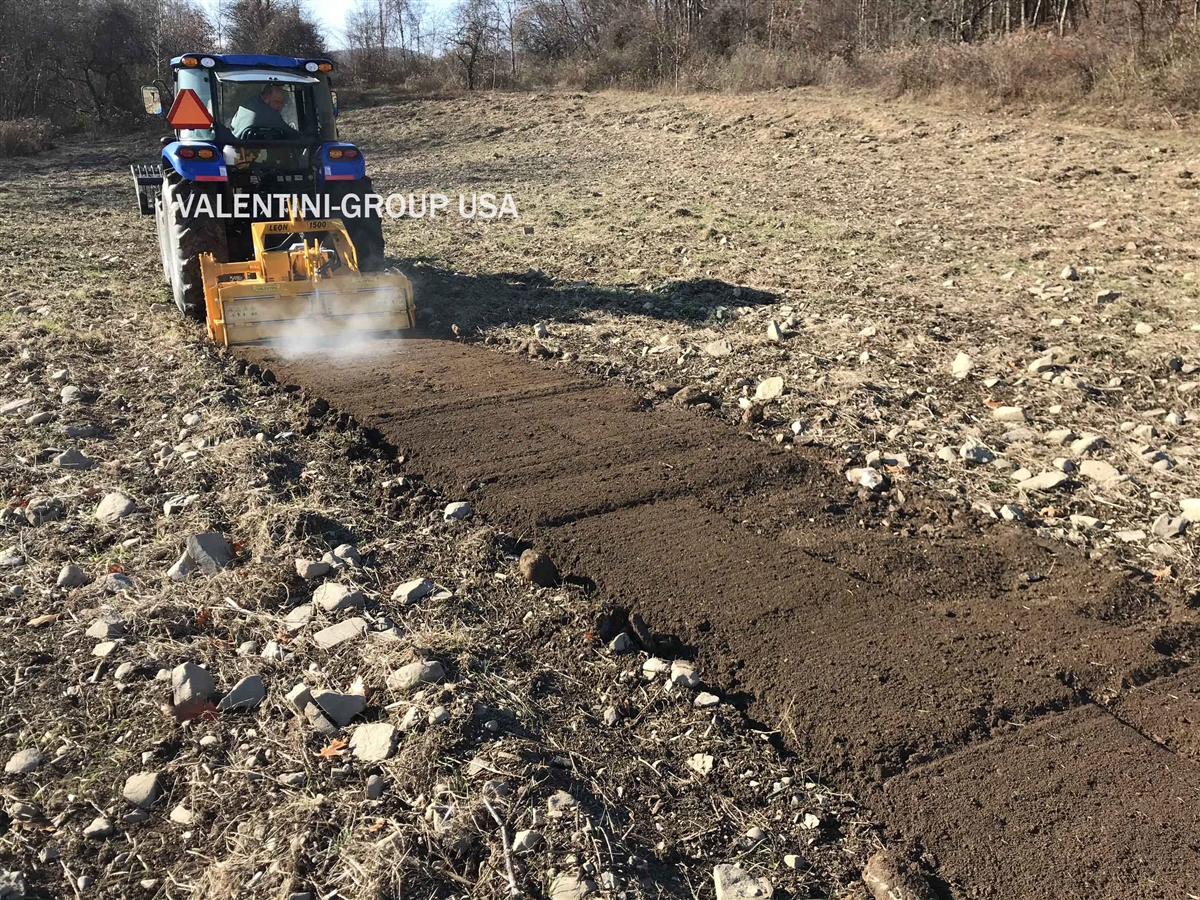

Some Sample Images Show Tractor For Reference Only - Tractor is Not Included.
-
Sample Video is of an L1500 For Reference Only.
-

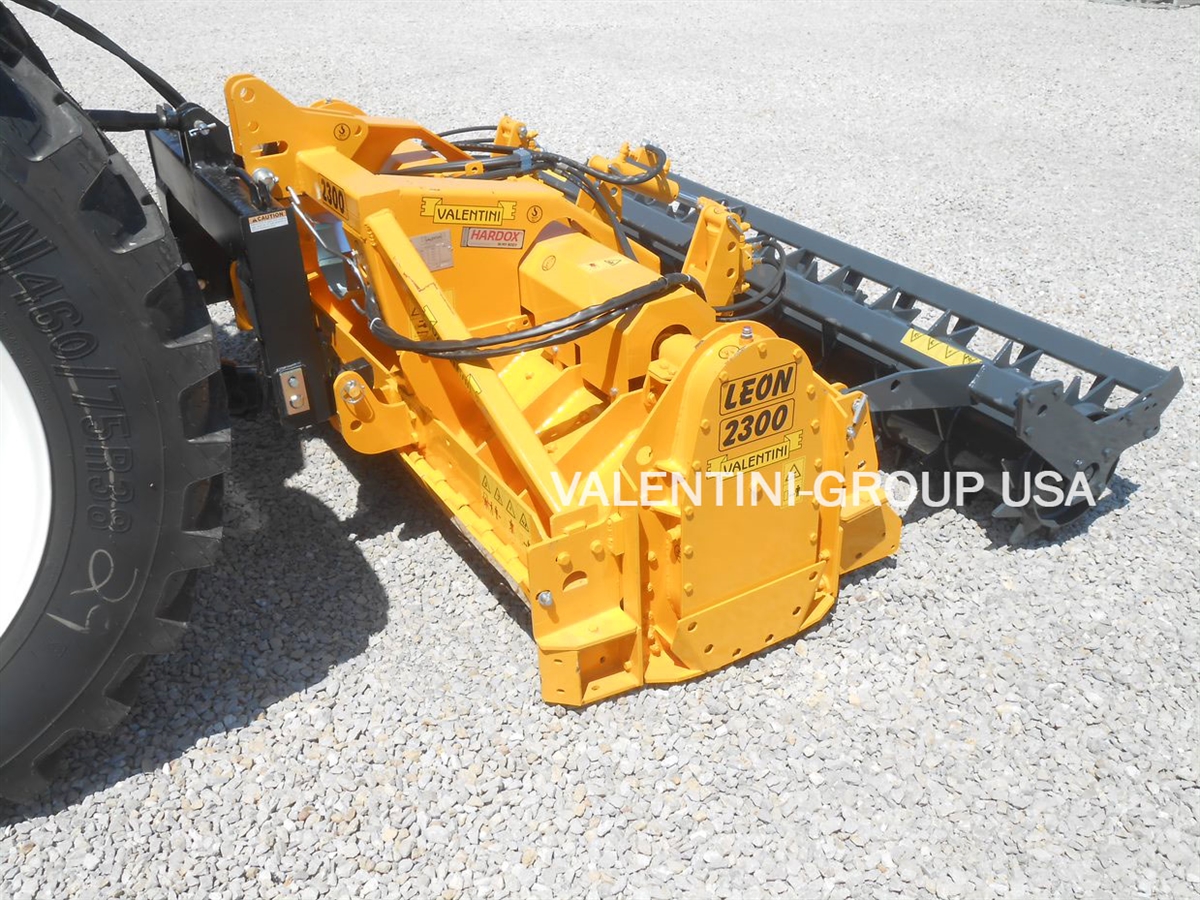

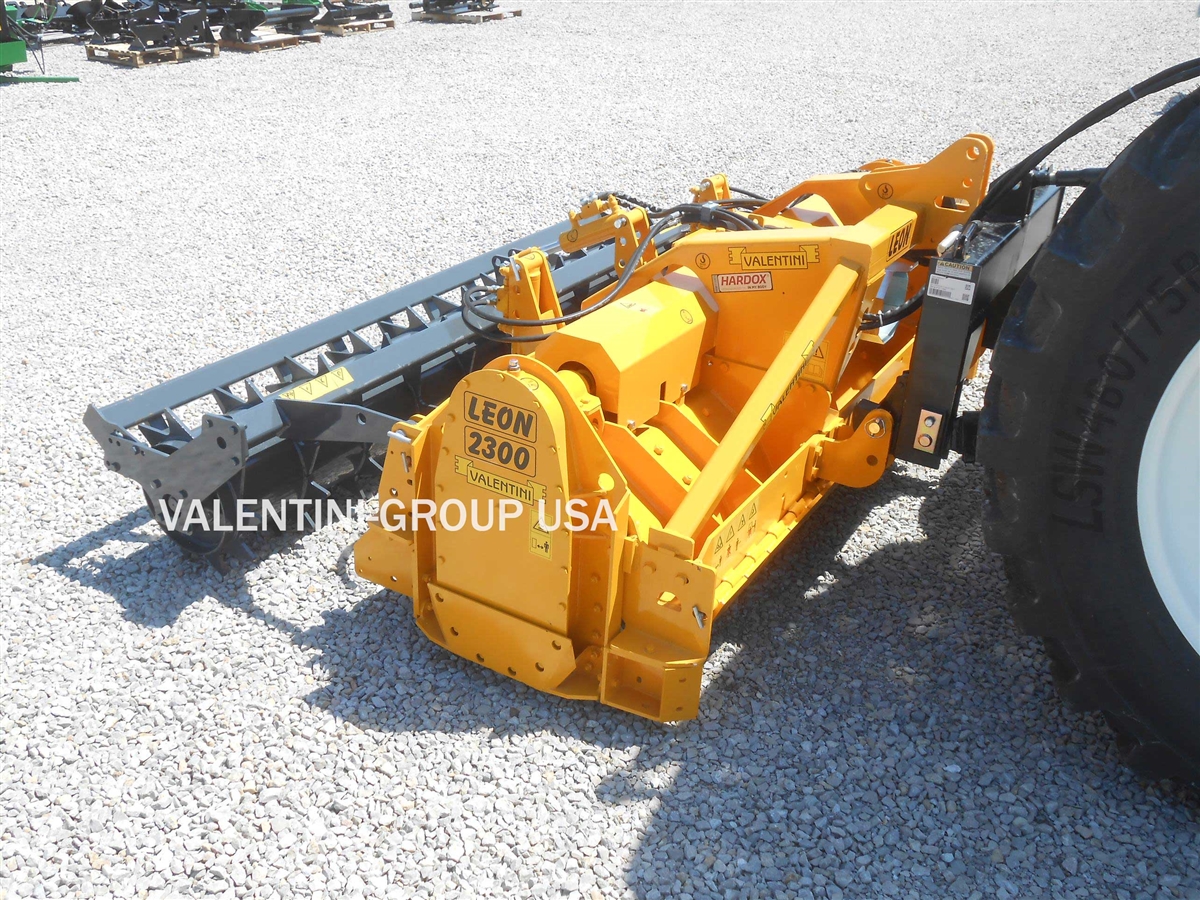

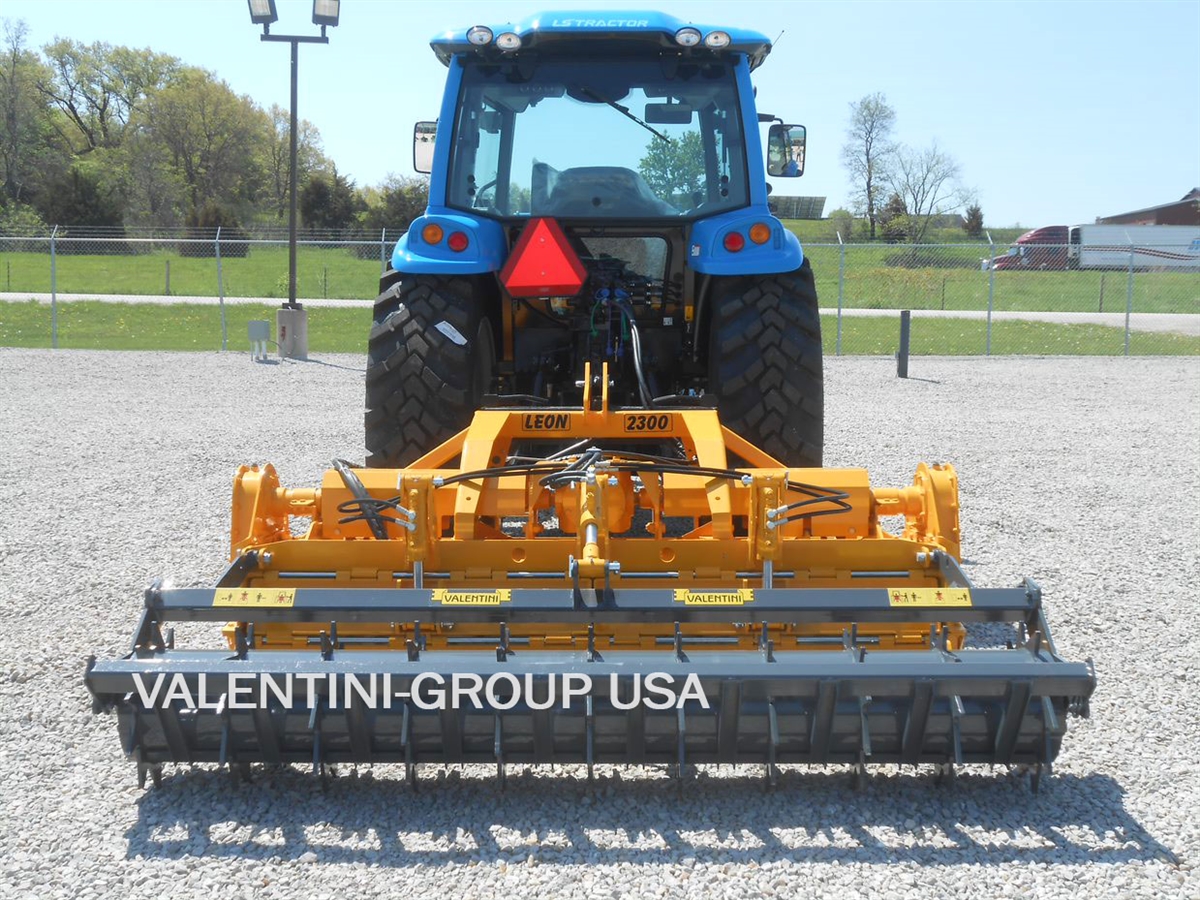

Sample Photos Include The L1500, L1800DT & L2300DT For Reference Only; This Listing is For a L2000DT.
-
Category 2, 3-Point Hitch.
-
Suitable for 110 to 170HP, PTO Tractors.
-
Rotor Diameter: 19".
-
Working Width: 82".
-
Overall Width: 92".
-
Quantity of Teeth: 214.
-
Working Depth on Non-Passive Surfaces: 3".
-
Working Depth on Passive Surfaces: 7".
-
Weight: 3,527LBS (less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
