Leon 1000 Rock & Stone Crusher:
42" Working Width
Suitable for 80-110HP

Valentini Leon 1000 Rock & Stone Crusher



Alternative Views:



Availability:: Availability Varies From Season To Season
Product Code: LEON1000


GENERAL FEATURES: SPECIFICATIONS:


  • Crushers 'Diminishing Chamber' is Comprised of the Following:
    • Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
    • Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
    • Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
      • Containment Door Constructed for Extreme Service Duty & Wear Resistance.
    • Crusher Body Internal Hardox Lining is Replaceable.

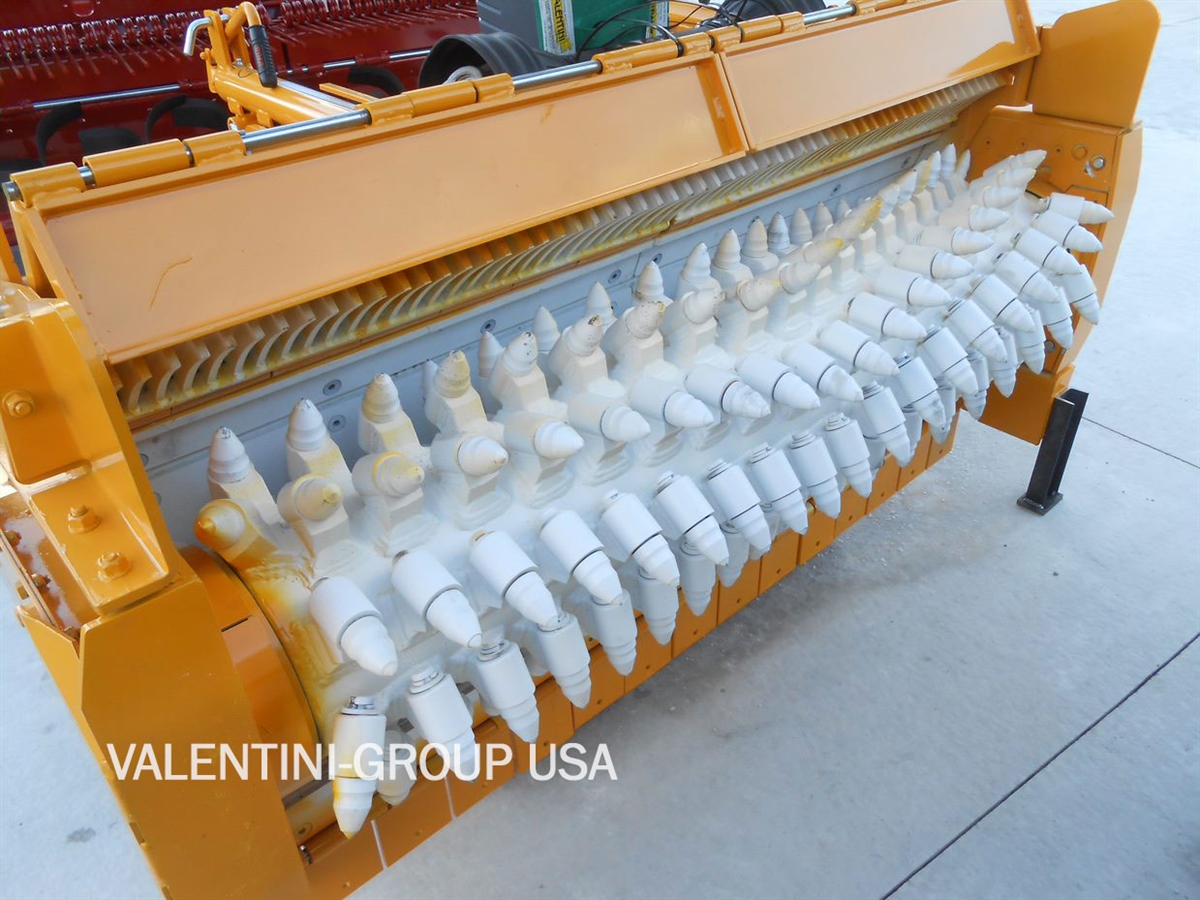

  • Extreme Service Duty Rotor is Shock & Wear Resistant.
  • 19" Rotor Working Diameter, Tip to Tip.
  • 1" Diameter Tooth Shanks & Holders.
    • Tooth 'Holders' are Welded to the Rotor.
    • Teeth are Fixed in Holders with Snap Rings for Easy Service!
  • Central & Side Gear Drives in Oil Bath Gearboxes.
    • Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
  • Wear Plates/Skid Shoes on Both Sides of Crusher.
  • Safety Covers & Guards.
  • Crusher Includes Cam Clutch Protected Main PTO Shaft.
    • It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available:
      • No Maintenance, With Automatic Clearing & Resetting After Locked Rotor Conditions!

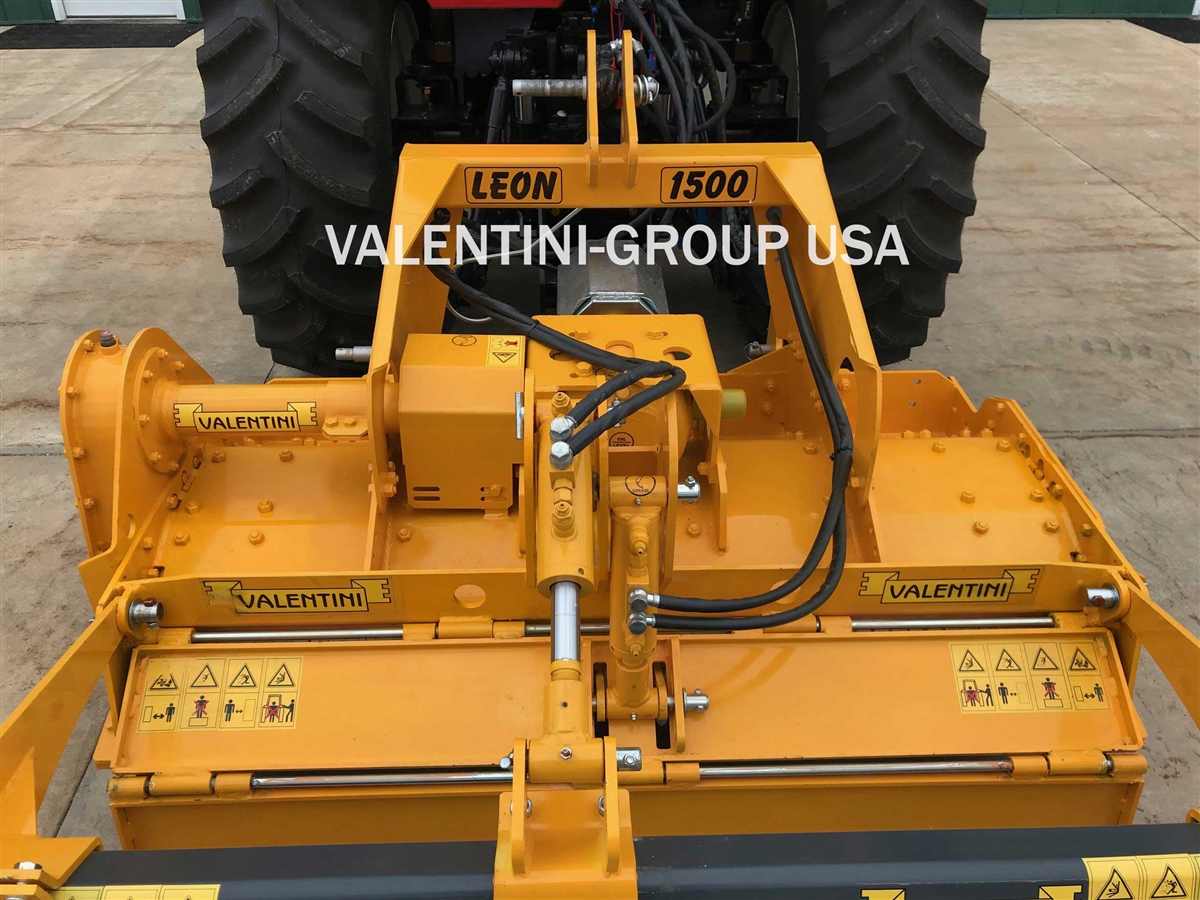

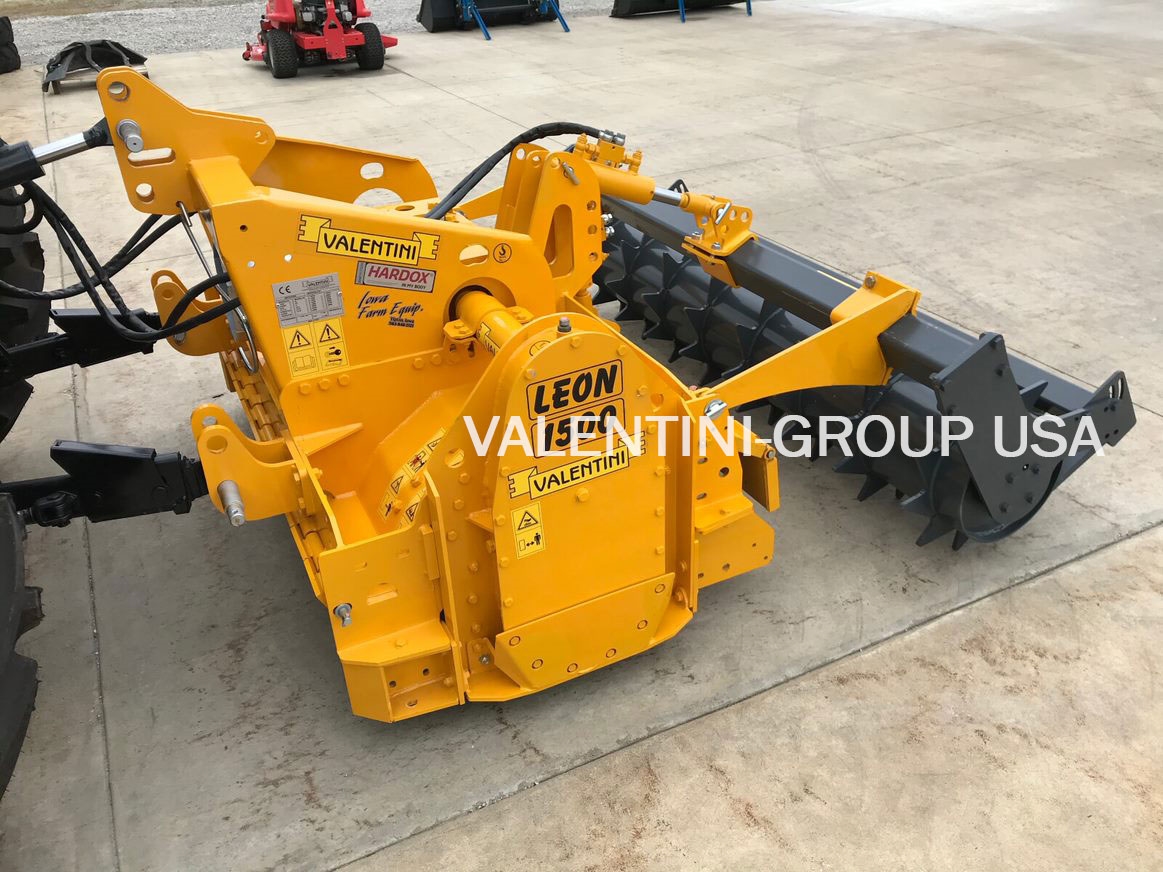

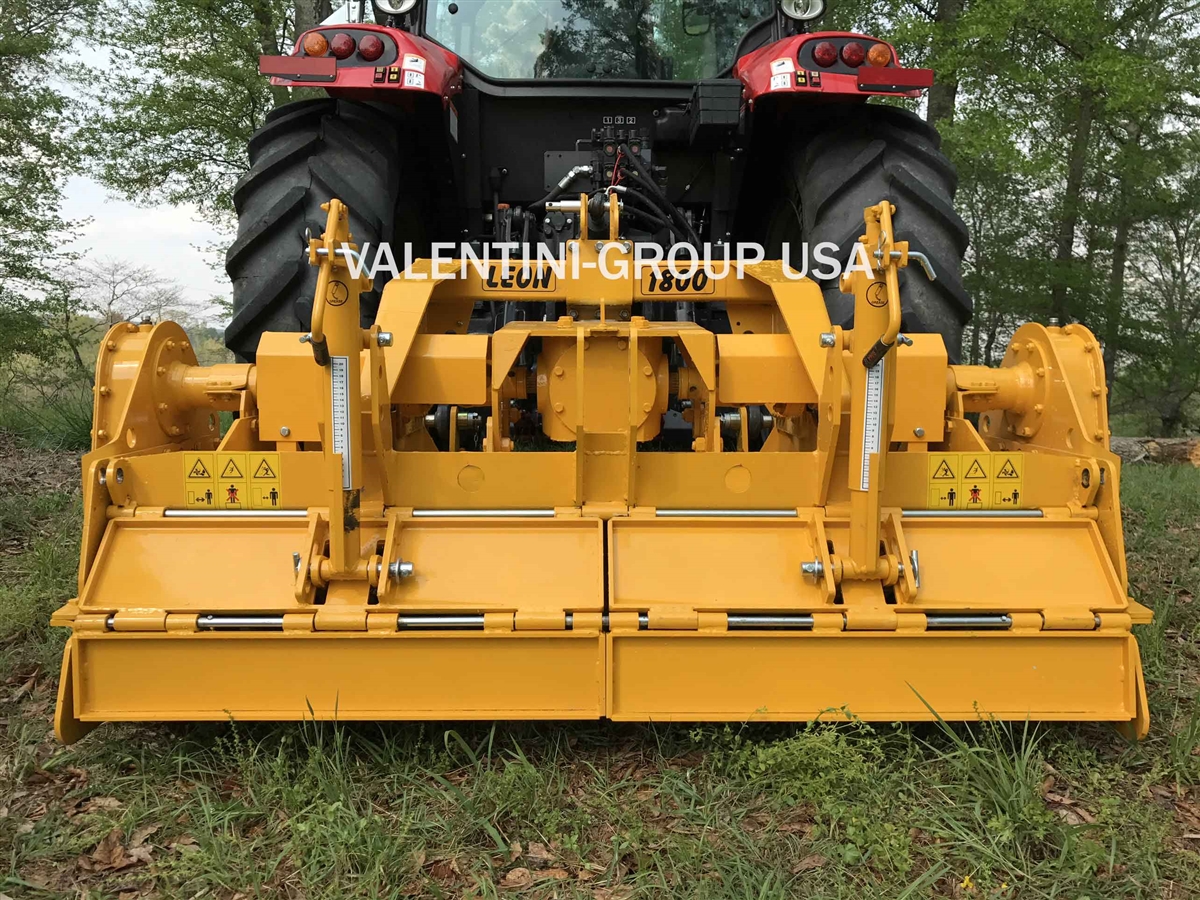

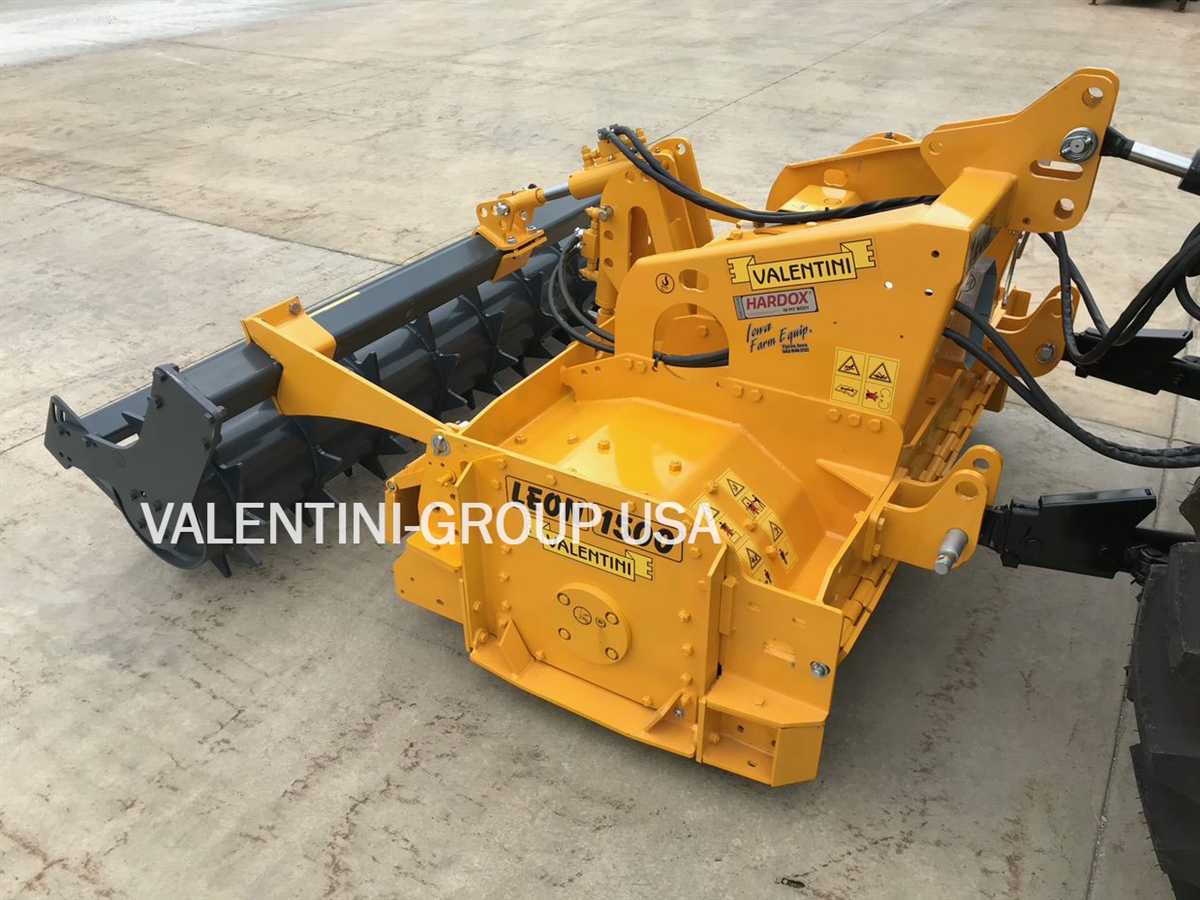

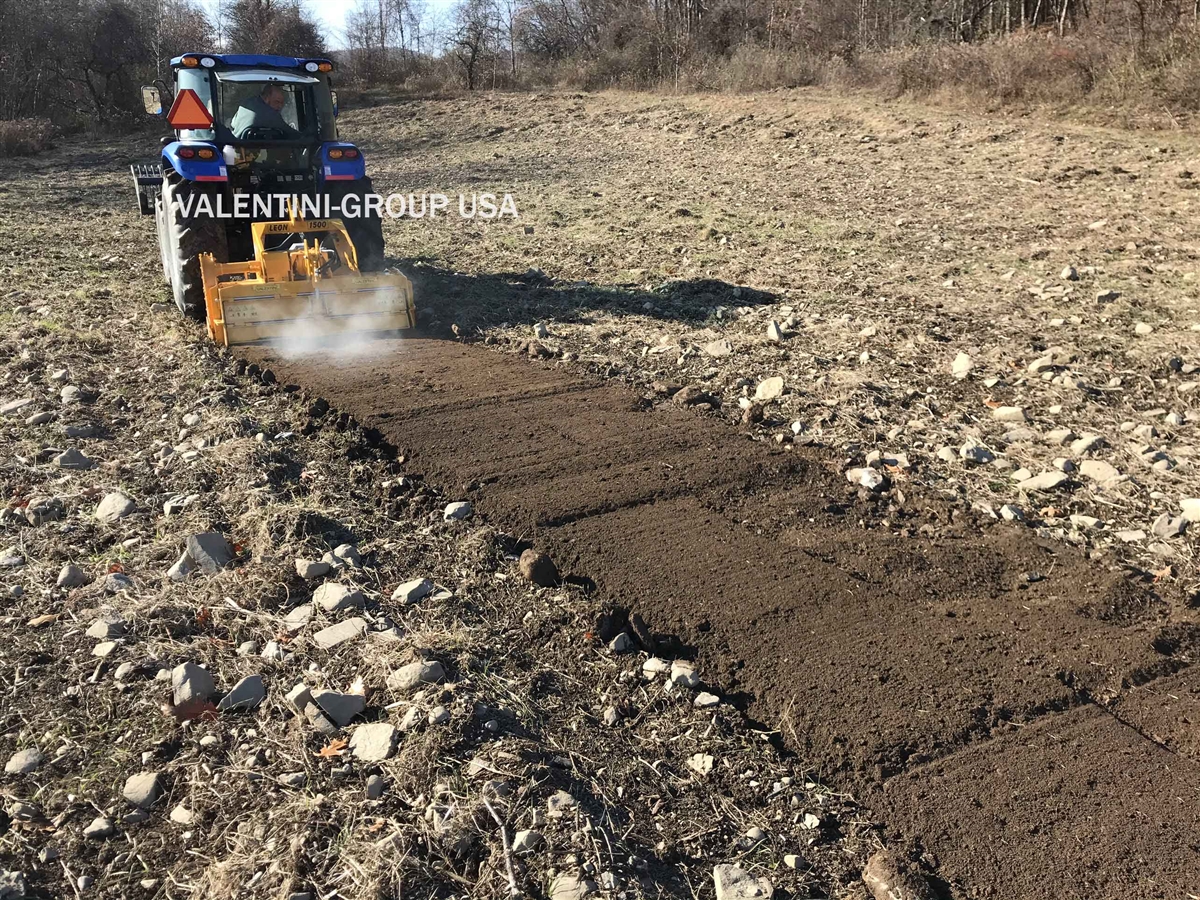

  • Images & Video Show the Leon 1500 & 1800 Crushers, But This Listing is For the Leon 1000 As Stated.
  • Some Sample Images Show the 'Optional' Packer Roller - This Listing Does NOT Include the Packer Roller.
    • Images show Tractor for Reference Only - Tractor is Not Included.
