CR1600 Forestry Mulcher & Grinder:
63" Working Width
Mulch & Grind To 6" Dia
70-130HP Tractors
Valentini CR1600 3PT Forestry Mulcher & Grinder

Alternative Views:


Availability:: Usually Ships in 3 to 6 Weeks!
Product Code: CR1600-MULCHER


GENERAL FEATURES: SPECIFICATIONS:

  • Severe Duty 1000RPM Large Sump Gearbox & PTO Shaft w/Over-Running Clutch, Which Provides Two Advantages:
    • First, Easy Alignment & Attachment of the PTO Shaft to the Tractors Output Shaft:
      • O.R. Clutch Enables Free Spin of the PTO Shaft For Alignment!
    • Second, Smooth Shut Down:
      • O.R. Clutch Allows Mower Gearbox to Free-Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the Tractors PTO Brake!
    • 540RPM Gearbox Available Separately.

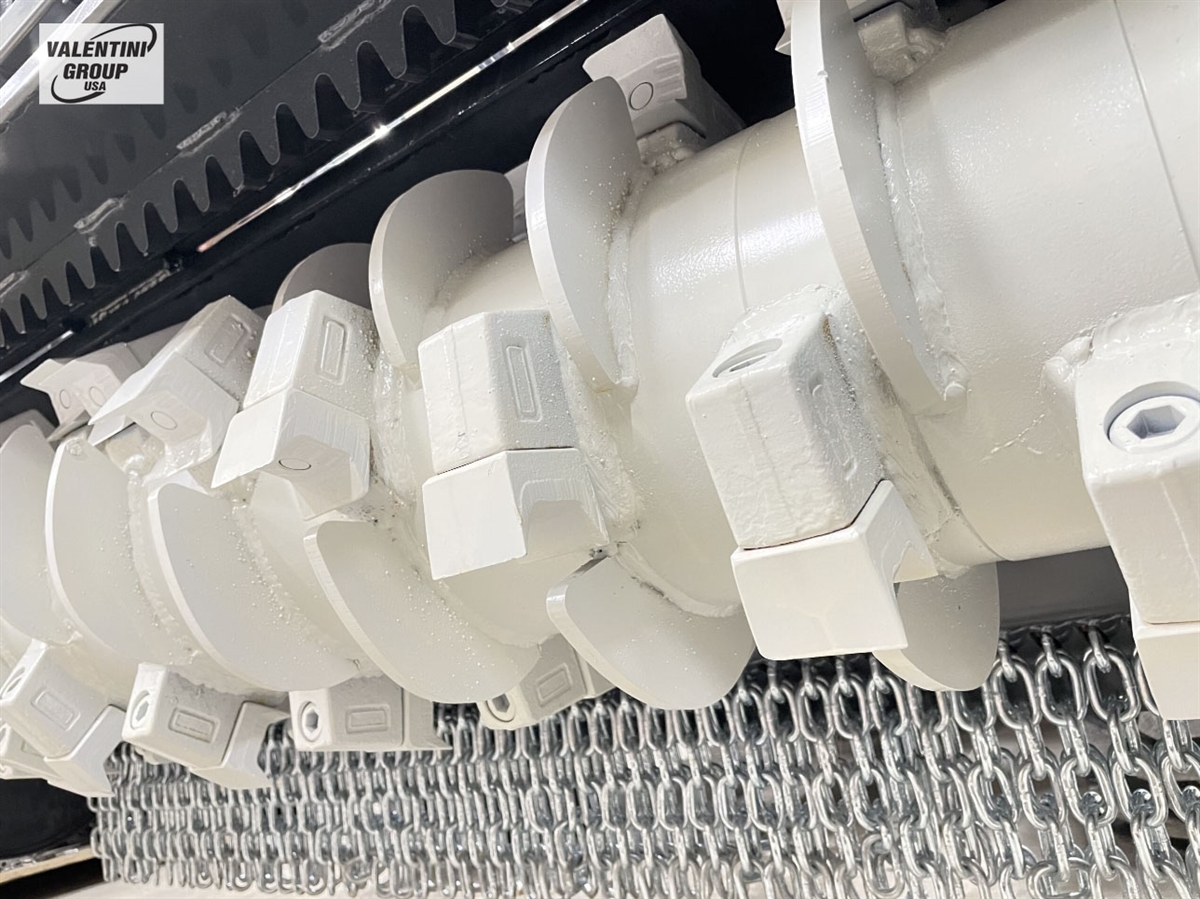

  • Severe Duty, Computer Balanced, Highly Populated Rotor With Bite-Limiting Collars For Each Tooth:
    • Bite Limiting Collars At Each Tooth Ensures The Most Efficient Mulching & Grinding Operation By Coordinating Each Carbide Tooths Entry Into Vegetation With The Tractors Available HP! This Eliminates 'Bogging & Reacceleration Cycles' of The Tractor & Mulcher, Eliminates 'Low End Lugging' Of Tractors Engine, Ensures Best Possible Fuel Consumption & Eliminates Irritating Mulching Activities For The Operator.
  • Heavy Duty Fixed, Reversible Teeth:
    • Our Fixed, Reversible Sharp & Hardened Tool Steel or Optional Carbide Teeth Will Provide Efficiently Aggressive Land Clearing, Mulching & Grinding With The Best Possible Ground Speeds:
      • If Your Ground Is Not Reasonably Free Of Fixed Objects (Boulders, Steel Posts, etc.), Or Very Sandy, Then Consider the Optional Carbide Teeth Which Last Longer in Abrasive Conditions, But With Their Solid Construction May Require Slower Ground Speeds.
  • Hydraulically Operated Mulching Door Can Be Operated 'On-The-Fly' To Coordinate Ground Speed & Desired Results In Varied Demands:
    • Open, Close & Full Travel Function Of Rear Mulching Door Also 'On-The-Fly':
      • Fully Open To Drive Back Over Material To Mulch, Stuffing Material Into The Mulcher, Grinder.
      • Then Closed (Full or Partially While Driving Forward) If Further Reduction Of Material Is Desired.
  • Double Skinned Mulcher w/Each Deck At 5/16" Thick!
  • Double Under Deck Aggressive Mulching Counter Blades Capture & Further Reduces Material.
  • Extra Wide Bolt-On Skid Shoes Provide Support On Softest Grounds While Allowing Mulching & Grinding Activity To Be Flush To Grade!
    • Skid Shoes Can Be Adjusted For About 1" Of Working Height Adjustment.
    • Front & Rear Acutely Radiused Skid Shoes For Contact with Stumps & Prevention of Material Accumulation.
    • Skid Shoes & All Working Contact Parts Made with Abrasion Resistant Steel!

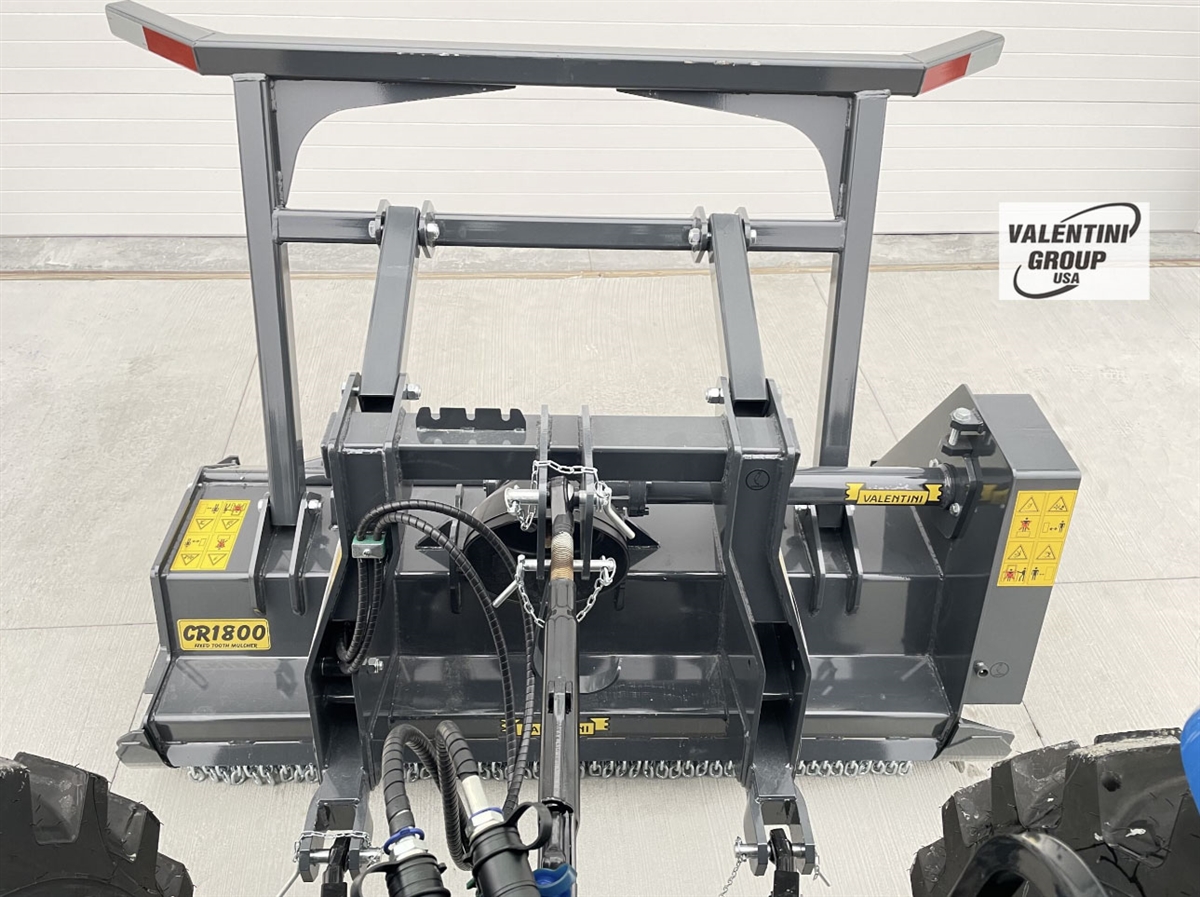

  • Double Sets of Top Link Pin Holes:
    • Two Standard Diameter. Use To Maintain Desired Elevation To Follow Tractor Over Terrain.
    • Center Horizontal Oval Pin Hole Allows Mulcher To Follow Terrain With About 3" Of Float At The Top Link Pin.
  • Top Of Heavy Duty Push Bar Is 58" From Grade.

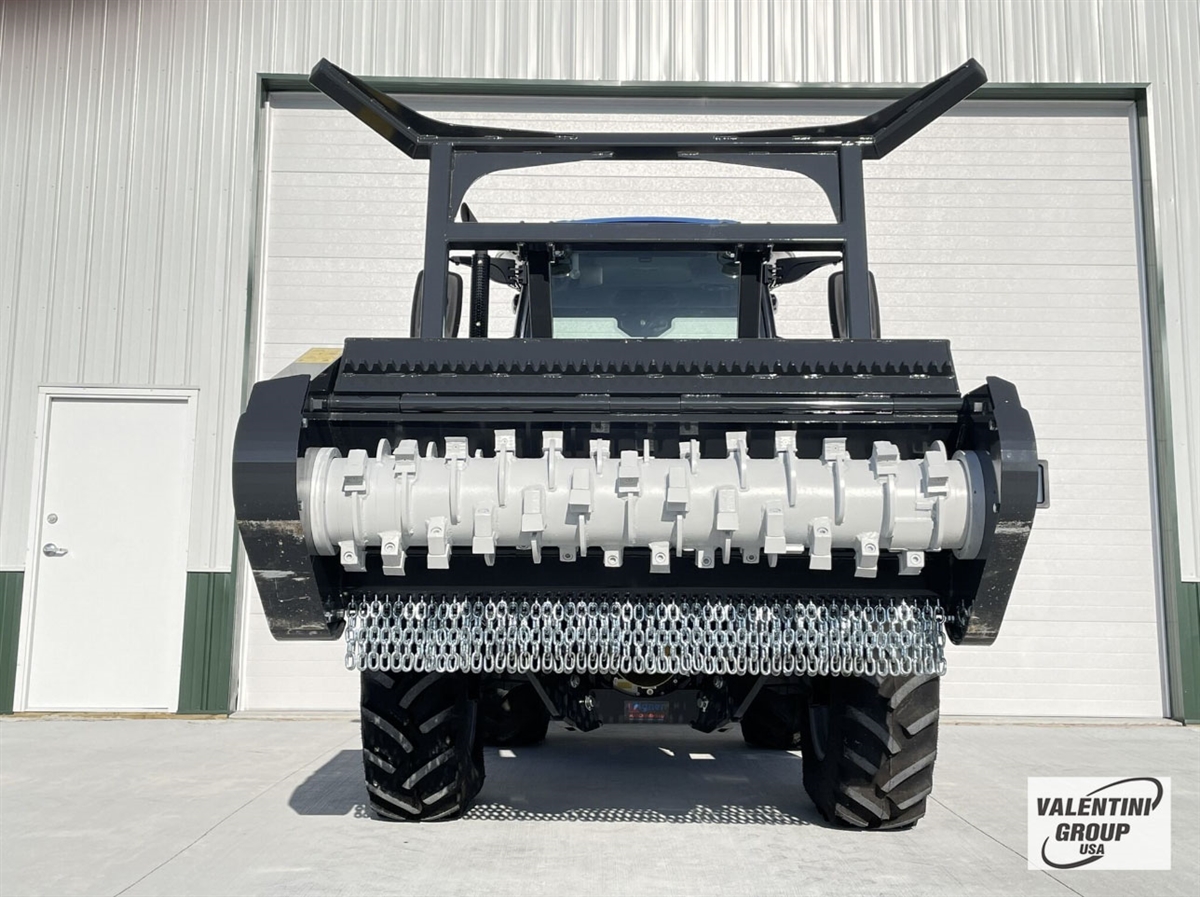

  • Double Row Of Heavy Duty Front Chain Guards.
  • The Severe Duty Rating Of This Mulcher/Grinder Allows For Multiple Efficient Applications:
    • Land Clearing & Mulching Of Saplings, Young Trees (To 6" Dia), Dense & Heavy Stands Of Vegetation.
    • Drive Over Stump Grinding.
  • Mulcher Ships Complete & Assembled With 1000RPM PTO Shaft w/Over-Running Clutch, Hydraulic Hoses & Tips!

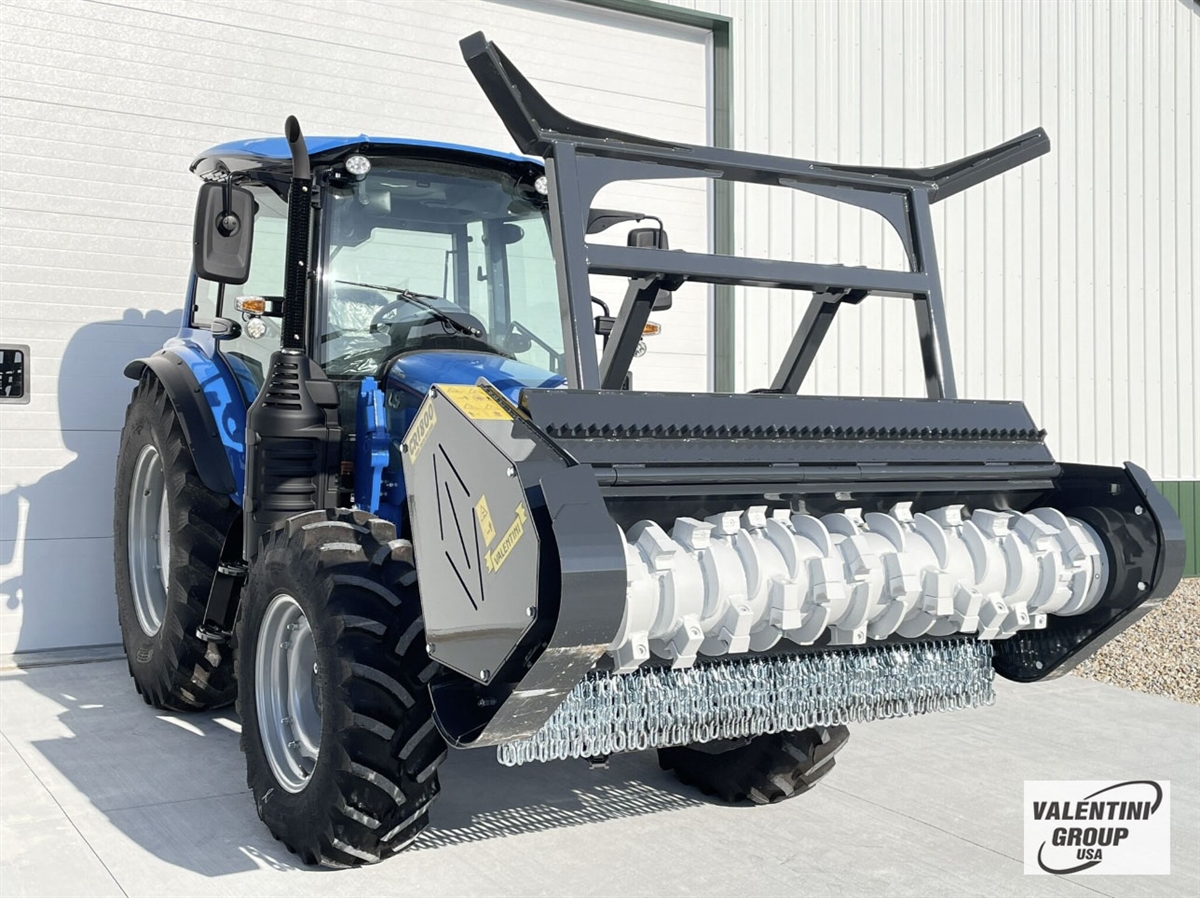

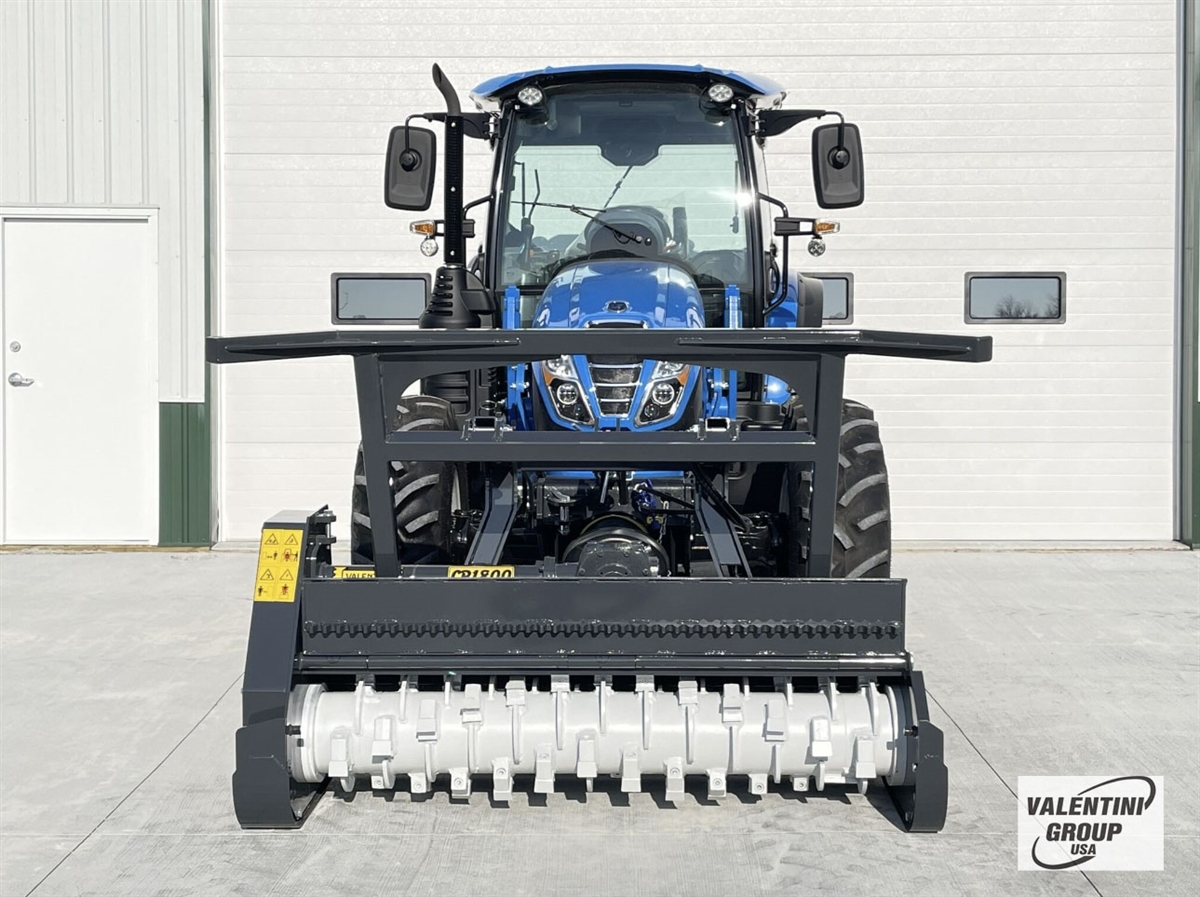

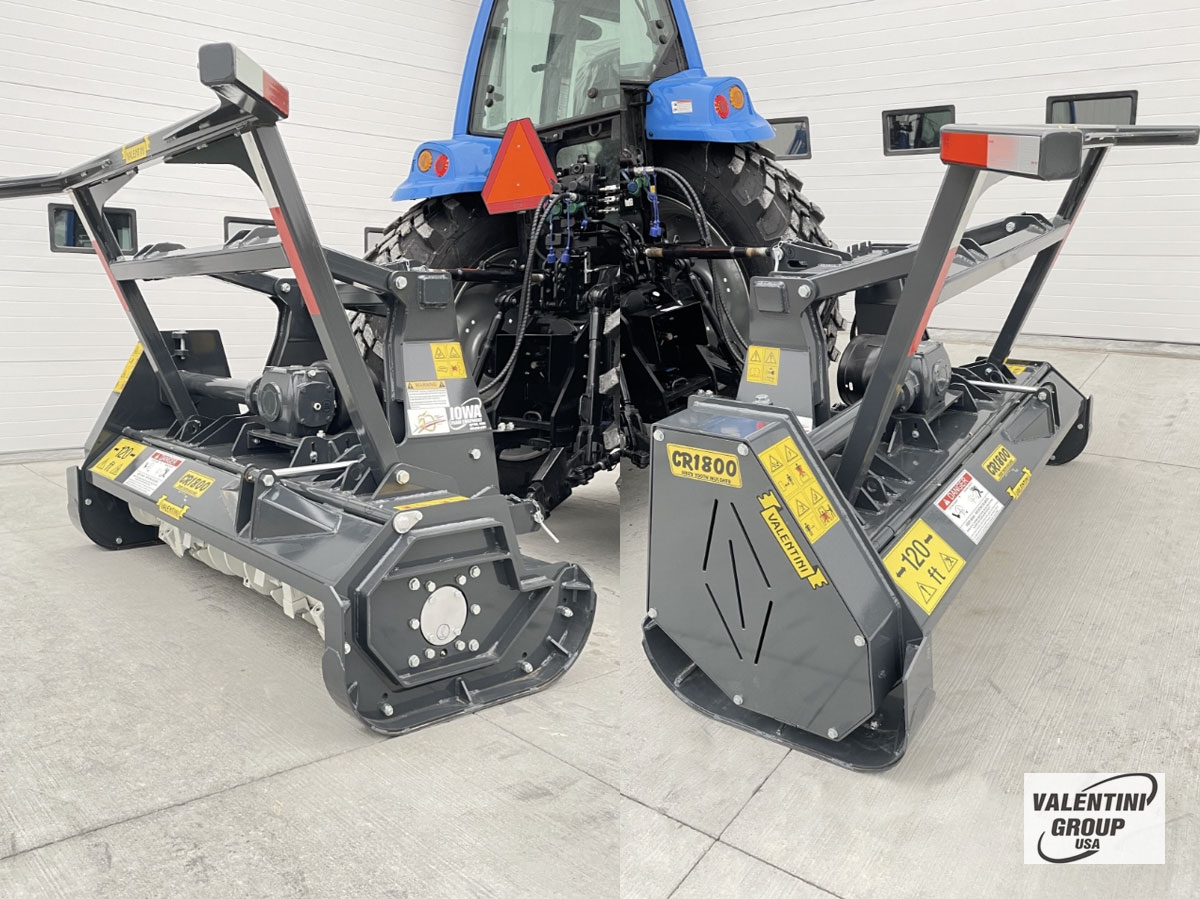

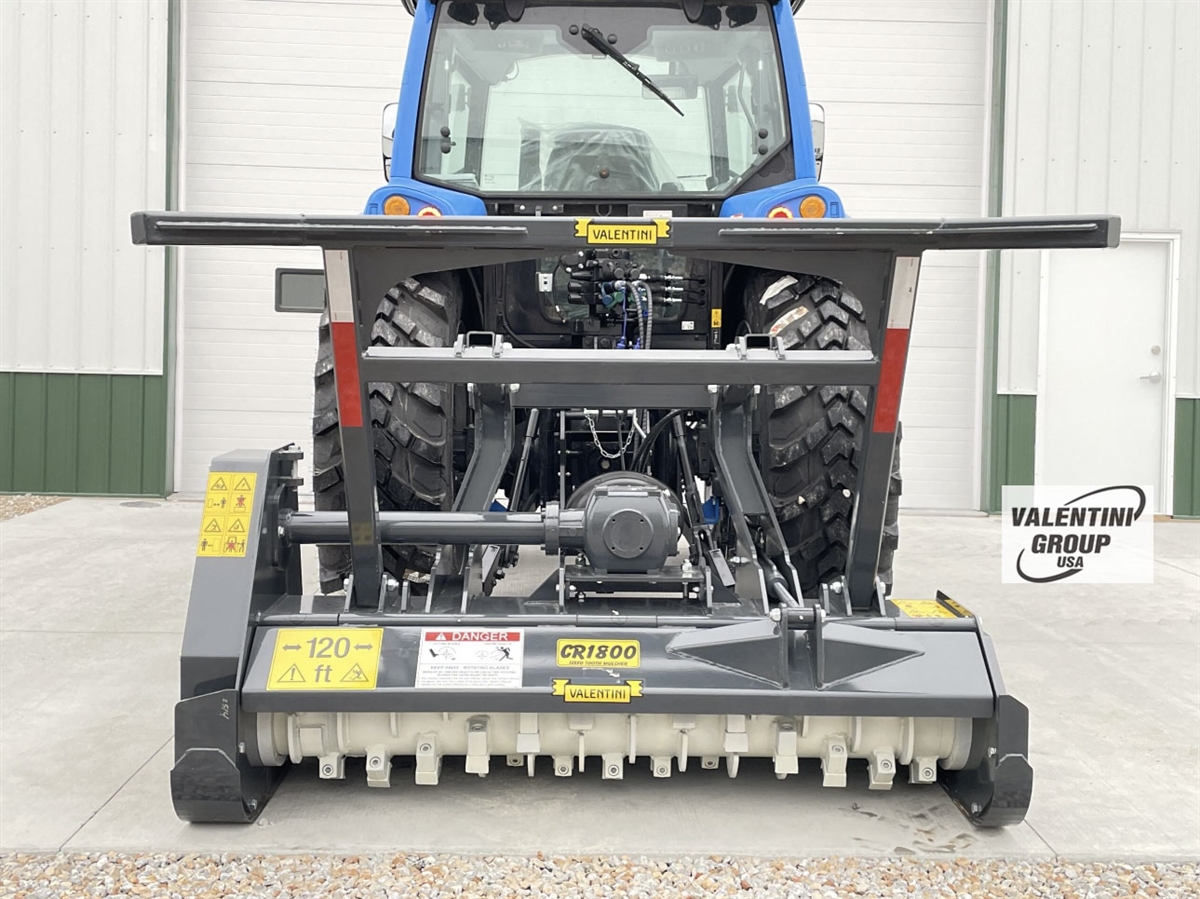

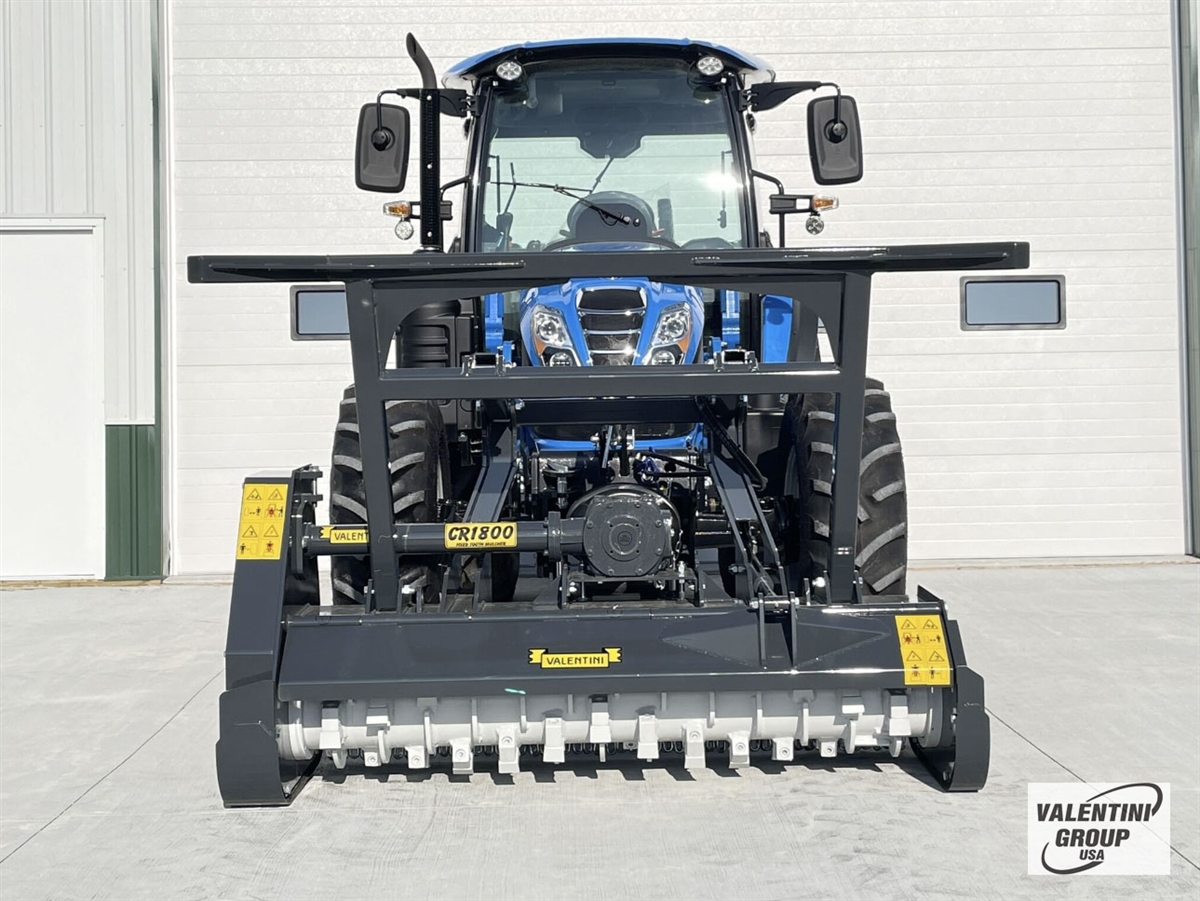

  • Sample Photos Show Mulcher on a Tractor - Tractor NOT Included!
