Crushers 'Diminishing Chamber' is Comprised of the Following:
-
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
-
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
-
Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
-
Crusher Body Internal Hardox Lining is Replaceable.
-
Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
-
Extreme Service Duty Rotor is Shock & Wear Resistant.
-
1-3/8" Diameter Tooth Shanks & Holders.
-
Central & Side Gear Drives in Oil Bath Gearboxes.
-
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
-
Hydraulically Adjusted Rear Skid Shoes.
-
Safety Covers & Guards.
-
Crusher Includes Cam Clutch Protected Main PTO Shaft.
-

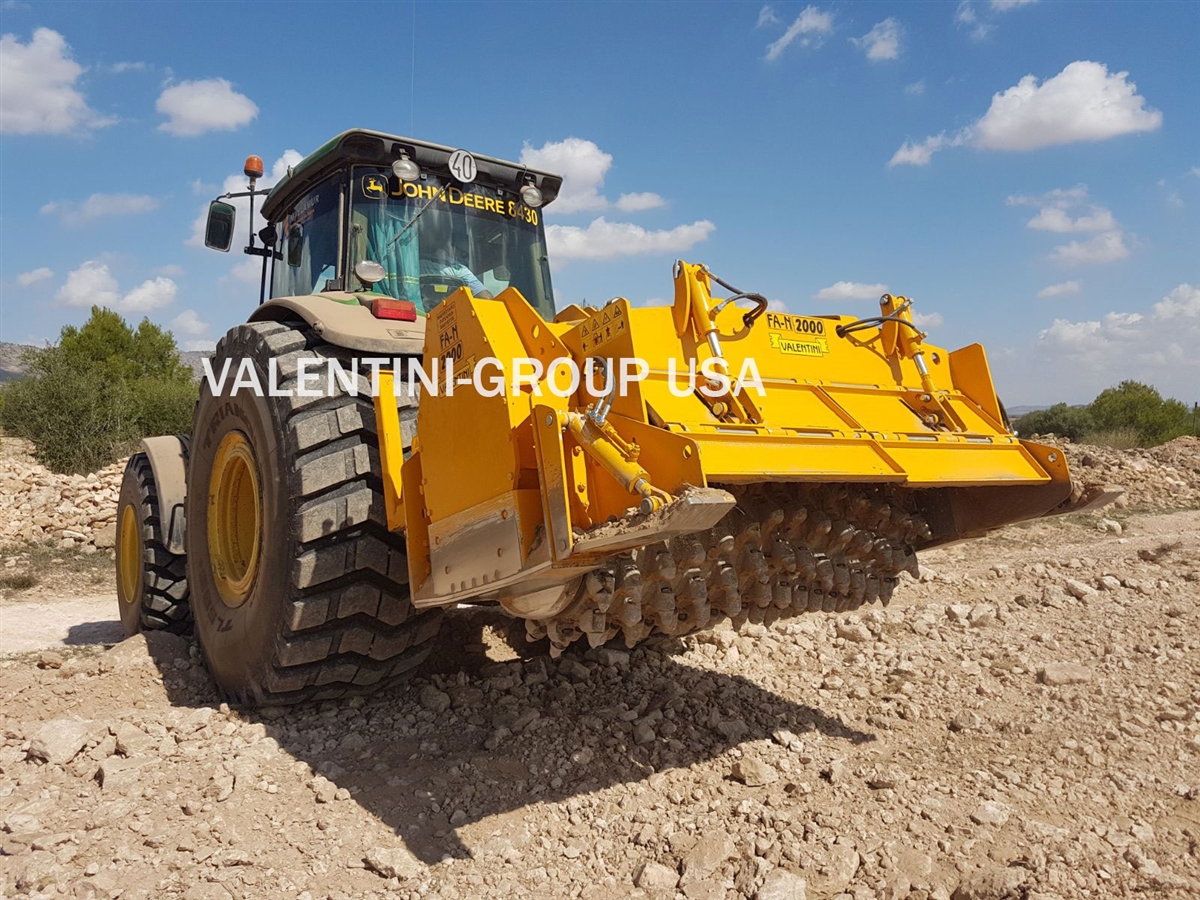

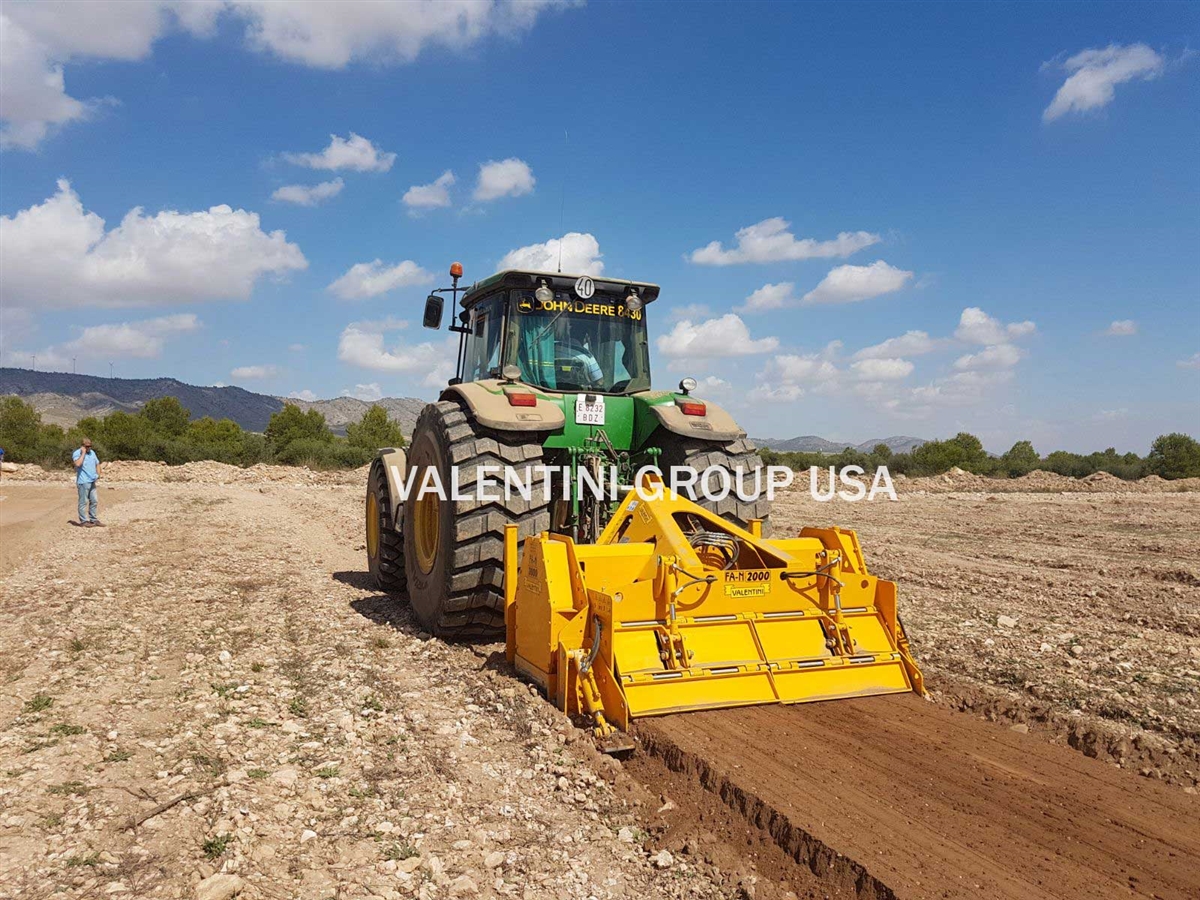

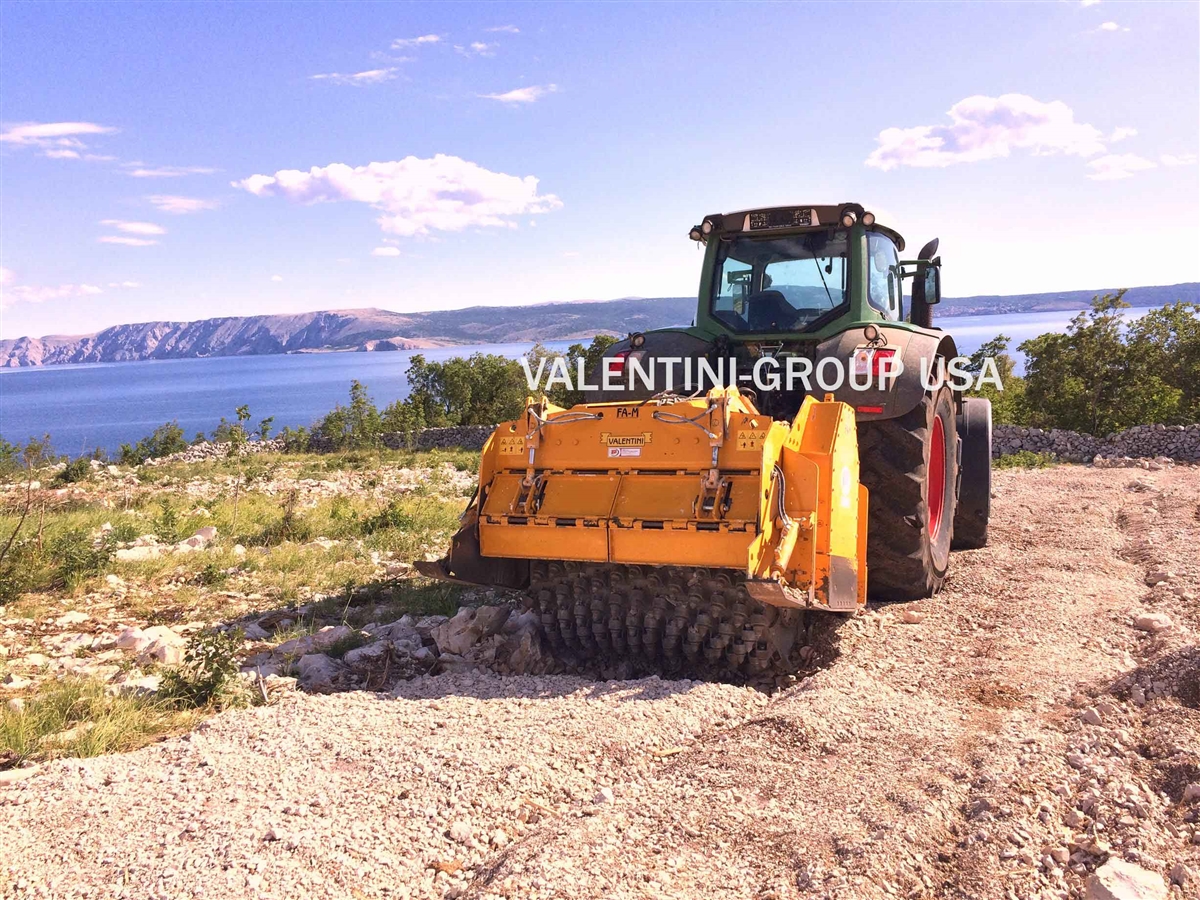

Sample Images Show Tractor For Reference Only - Tractor is Not Included.
AA2000DT-L Series:
-
Category 3, 3-Point Hitch.
-
Single Speed Unit, 1000RPM.
-
Suitable for 220 to 450HP, PTO Tractors.
-
Rotor Working Diameter, Tip to Tip: 31.5".
-
Working Width: 6'-7".
-
Overall Width: 8'-1".
-
Quantity of Teeth: 170.
-
Qty Side Drive Gears: 4.
-
Working Depth on Non-Passive Surfaces: 7.5".
-
Working Depth on Passive Surfaces: 16".
-
Weight: 12,210LBS (less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
AA2000DT-N Series:
-
Category 3, 3-Point Hitch.
-
Single Speed Unit, 1000RPM.
-
Suitable for 240 to 450HP, PTO Tractors.
-
Rotor Working Diameter, Tip to Tip: 36".
-
Working Width: 6'-7".
-
Overall Width: 8'-1".
-
Quantity of Teeth: 185.
-
Qty Side Drive Gears: 4.
-
Working Depth on Non-Passive Surfaces: 10.6".
-
Working Depth on Passive Surfaces: 20".
-
Weight: 12,760LBS (less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
AA2000DT-M Series:
-
Category 3, 3-Point Hitch.
-
Single Speed Unit, 1000RPM.
-
Suitable for 340 to 450HP, PTO Tractors.
-
Rotor Working Diameter, Tip to Tip: 45.5".
-
Working Width: 6'-7".
-
Overall Width: 8'-1".
-
Quantity of Teeth: 265.
-
Qty Side Drive Gears: 6.
-
Working Depth on Non-Passive Surfaces: 16".
-
Working Depth on Passive Surfaces: 28".
-
Weight: 15,840LBS (less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
 |
 |
 |
 |

|
